PERI launches first residential 3D printed building in Germany

China3D printingNet October 7th, global formwork and scaffolding manufacturer PERI is building the first one in Germany3D printingResidential. PERI uses Danish manufacturer COBODarchitecture3D printingMachine and specifically for3D printingThe concrete material of HeidelbergCement was designed to create a two-story detached house with approximately 80 square meters of living space on each floor. The project is located in the town of Beckum, part of North Rhine-Westphalia. It demonstrates the potential of additive manufacturing and shows that COBOD’s technology is ready for the market.

The project received a subsidy of 200,000 euros from North Rhine-Westphalia. The department will3D printingAs the development direction of housing construction. Local government officials emphasized the importance of supporting Beckum’s 3D construction project as part of its “Innovatives Bauen” (innovative building) development plan, which is already in the printing process.


3D printing
Rendering of the building in Germany” alt=”
3D printing

Rendering of the building in Germany” width=”620″ height=”349″ />

3D printingRendering of buildings in Germany.Image courtesy of PERI

” architecture3D printingIt has fundamentally changed our construction method and housing construction process. Since this is the first building of its kind, we have to print dots at a speed slower than practicable. “PERI production and supply chain director Leonhard Braig said. “We hope to take this opportunity to gain more experience in daily operations, because this will help us to make greater use of the technology’s cost-reducing potential in our next printing project. “


3D printing
The machine built the first residential building in Germany” alt=” PERI uses BOD2
3D printing

The machine built the first residential building in Germany” width=”620″ height=”440″ />

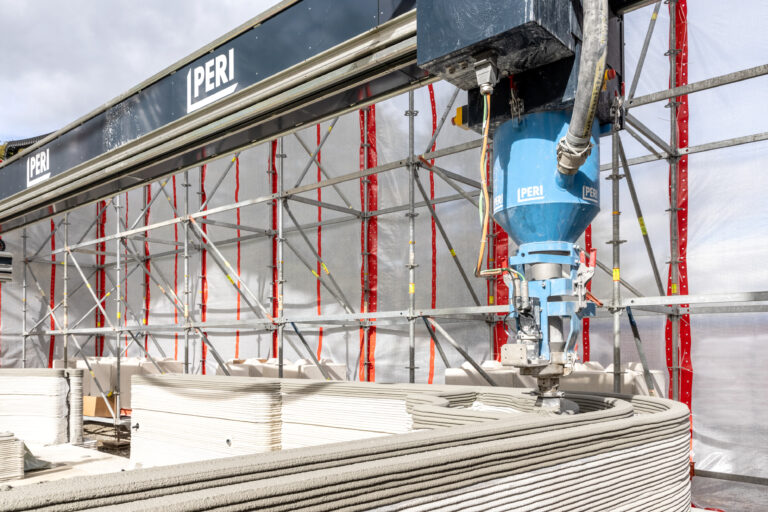

PERI uses BOD2 3D printingThe machine built the first residential building in Germany.Image courtesy of PERI

Additive manufacturing technology is expected to revolutionize the construction industry, especially3D printingThe construction market is expected to reach US$1.5 billion by 2024. Over the years, there have been many large-scale projects, including houses built in one day, entire villages and more.Especially around3D printingThe speed of housing, many companies have aroused great attention and surprise.Nevertheless, there are very few experts3D printingThe buildings are available for daily use, and experts are still cautious, which shows that so far, ultra-fast building structures are not realistic.

There are some challenges in 3D architectural printing, mainly the surrounding materials and machines.However, COBOD has been sending out signals that the building3D printingIs becoming stronger and stronger. The company was established a few years ago as a spin-off company of Printhuset and received investment from the PERI Group. The company disclosed its earnings performance in 2019, and although the COVID-19 pandemic continues, orders for its BOD2 construction printers are still increasing.In addition, the two-story building in Germany closely follows Europe’s first building in Belgium3D printingThe two-story building, which was also developed by COBOD for one of its clients, Kamp C, was announced only a few months ago.

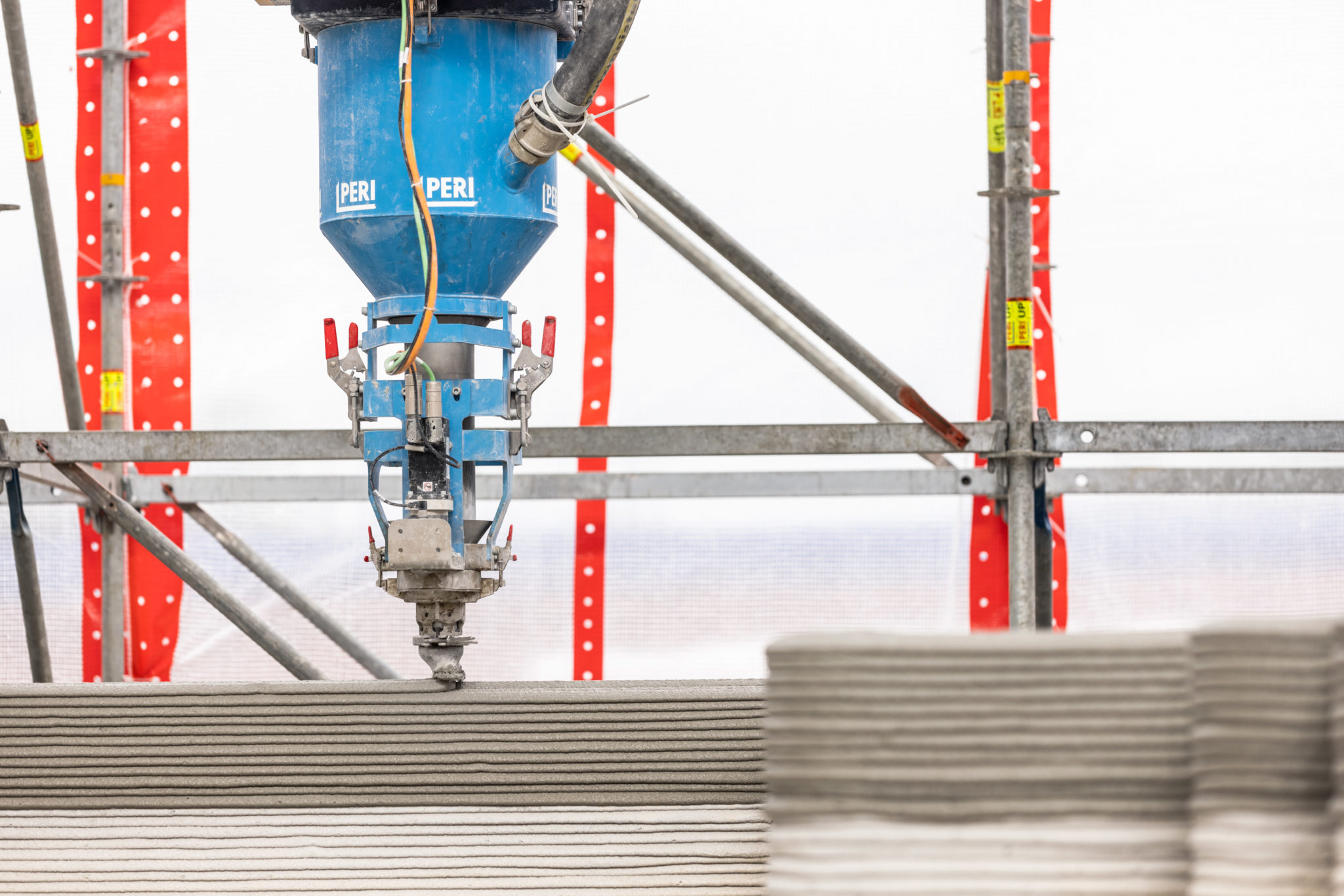

Especially for this project, PERI relied on COBOD’s BOD2 printing technology. The print head of the gantry printer can move around three axes on a firmly installed metal frame. The advantage of this is that the printer can be moved to any position in the structure along its frame and only needs to be calibrated once.

According to China3D printingThe network understands that the building consists of a three-skinned cavity wall filled with insulating materials. Only two operators are required to run the printer, and the print head and print results are monitored by the camera. During the printing process, the printer will take into account pipes, water, electricity, and other pipes that are expected to be laid in the future. BOD2, at a speed of one meter per second (equivalent to printing 10 tons of concrete per hour), is considered by COBOD to be the fastest 3D construction printer on the market.



PERI uses BOD2 3D printingThe machine built the first residential building in Germany.Image courtesy of PERI

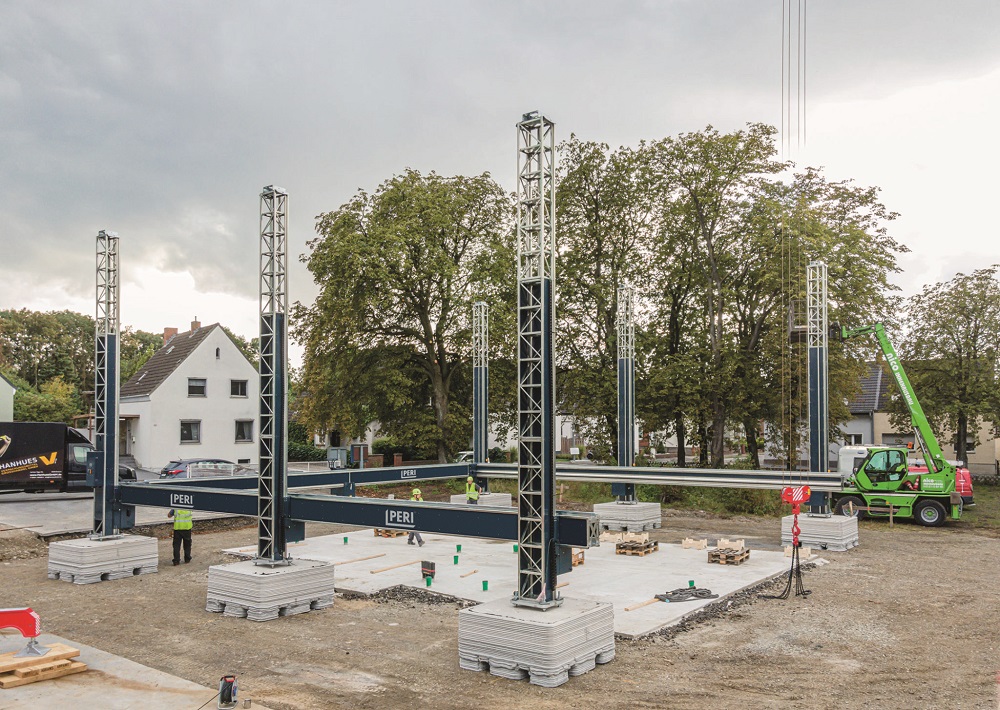

In fact, the machine only takes five minutes to complete a one-square-meter double skin wall. PERI has chosen to use long printers to meet customer needs. For the Bekhum building, the BOD2 used by PERI is 12,5 meters x 15 meters x 7,5 meters. The machine is also certified to work in the printing area during the printing process. In this way, manual work such as the installation of empty pipes and connections can be easily integrated into the printing process.

PERI executives described Beckum’s residential building as “a milestone in 3D architectural printing technology.” PERI’s Director of Innovation and Marketing Thomas Imbacher also emphasized the company’s role as a pioneer and pioneer of this new construction technology. He believes that this technology will become more and more popular in certain market segments in the next ten years. The more important.

In the past few weeks and months, the new construction technology has passed all regulatory approval procedures. The engineering department Schießl Gehlen Sodeikat supports the development of approved concepts, and the planning and execution of the corresponding approved tests are carried out by the Technical University of Munich. Finally, the building was planned by MENSE-KORTE Architects for one of its clients, the local architect Hous3Druck.
3D printingThe machine built the first residential building in Germany” alt=” PERI uses BOD2 3D printingThe machine built the first residential building in Germany” width=”620″ height=”414″ />
PERI uses BOD2 3D printingThe machine built the first residential building in Germany.Image courtesy of PERI
“At PERI, we see ourselves as a leading innovator in the market,” explained Fabian Kracht, Director of Finance and Organization and a spokesperson for the PERI Management Committee. “Investing wisely in startups that provide new solutions in our market is another aspect. 3D printingIt is a business area that has emerged from this portfolio and has now entered the market. Beckum’s success story is a testament to our correct approach. “

China3D printingOnline reviews:Like other industries,3D printingThe process provides designers with a high degree of freedom and a fast and cost-effective process for creating concrete structures, making this process an ideal alternative to conventional construction methods.Although only a few ambitious plans and plans have been tried, people’s expectations for it are high, and many companies will3D printingAs a key player in the construction industry. With the continuous advancement of technology, the innovative projects of PERI and COBOD have created potential for adding large-scale creations.
