“Reverse” 3D printing method to make bone repair scaffold implants faster

According to foreign media reports, for a while, I believe everyone has heard that stent-like implants can promote bone tissue or cartilage to re-grow to the missing part.Now, scientists have developed a faster and easier way3D printingTechnology to print out this implant.

3D printingMethod to make bone repair scaffold implants faster” style=”cursor:pointer;border:1px solid #e5e5e5;” width=”640″ height=”359″ />

First of all, how does the so-called “mini scaffolding” work? If the patient is missing a bone (due to an accident or disease), the doctor will first make an implant, and then place it in the place where the bone should be missing through surgery. The implant has a three-dimensional microstructure similar to a stent and is made of biocompatible, biodegradable materials. In addition, it may contain compounds that promote cell growth.

Since the internal structure of the implant is similar to natural bone, the cells of the adjacent bone tissue of the patient gradually begin to migrate into the implant, “dwelling” in the gap connected to it. These cells continue to multiply and replace the scaffold material. In the end, what is left is pure natural bones to fill the previous gap.

However3D printingImplants are very tricky, because the walls of the blank areas are very thin and complex-the most commonly used3D printingThe print nozzles on the machine simply cannot do that detail. This is becoming the entry point for new technologies.

This printing technology is called NEST3D (full name Negative Embodied Sacrificial Template 3D) printing and is jointly developed by scientists from RMIT University in Australia and St. Vincent’s Hospital in Melbourne.The process first passes3D printingPrint out the negative template of the blank space of the scaffold, which is made of solid polyvinyl acetate (PVA) glue. An ordinary printer nozzle can do this perfectly.

After the template is placed in the mold, a biocompatible/biodegradable liquid material such as a polymer is poured to fill the unoccupied space of the template. Once the polymer solidifies, water is used to dissolve the soluble PVA glue. In the end, the template disappears, and what remains is the complex polymer “skeleton” that forms the scaffolding.

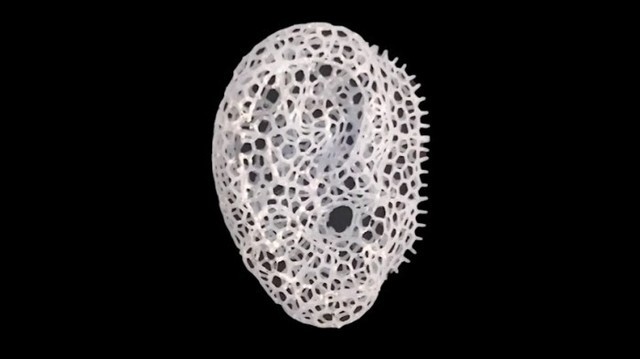

In addition to playing a role in repairing bone defects, this technology can also be used in applications such as implanting and replacing body parts in the laboratory. “Using an ordinary mid-to-high-end3D printingThe machine created such a complex shape is very remarkable. This really lowers the barrier to entry into the field and brings us one step closer to tissue engineering becoming a medical reality,” said the chief scientist, Dr. Cathal O’Connell of RMIT.”
