China3D printingNet November 3rd,The biological monitoring equipment for soldiers may look like the equipment in the movie “Cyberpunk 2077”, but the U.S. Army uses3D printingTechnology quickly pushed this technology to 2020. ARL has developed a novel multi-functional biosensor, and can perform physiological tracking of soldiers, which may enable them to have a deeper understanding of the threat of the situation on the ground.
With the development of modern warfare, the US Army has increasingly developed methods to protect its personnel from contamination by biological weapons.Using the ARL group3D printingSensors can now detect weaponized toxins, bacteria or viruses on the battlefield, thereby providing soldiers with the greatest chance of survival.Joshua Uzarski of the U.S. Army Research Laboratory (ARL) explained: “Conformal3D printingMicrofluidic devices can be manufactured quickly and customizable on biological surfaces such as human skin. The ability to monitor the physical condition of soldiers can make them temporarily need to be safely evacuated from the battlefield, so that judgment is removed from the soldiers’ hands. “
Although several similar “lab-on-chip” technologies have been tried in recent years, Uzarski was the first technology developed into a field-use device. Uzarkski has led two other biosensor projects during his six years at ARL and is a surface chemistry expert, but since working with the University of Minnesota (UMN), he has made significant progress.
What are the research goals and ambitions of CCDC and UMN?
Joshua Uzarski: The Soldier Center has been working on array-based biosensors for many years, but it has no ability to turn these findings into deployable platforms. UMN provides engineering expertise to push the development of microfluidic technology forward, which can help transform sensor ideas into devices that can be used in the field, including textiles (for uniforms), portable field devices, and even physiological monitoring on the skin.
What are the potential advantages of this type of equipment in military applications?
JU: Benefits include the ability to create sensor devices that are more on-site and compatible with bio-based detection. Most current technologies require flat, hard, and usually heavy materials that cannot be converted into on-site materials. These new devices can be created on soft, flexible and lightweight materials such as textiles and skin.
In addition, their good manufacturing conditions (such as high temperatures and harsh chemical treatments) relative to the prior art and the elimination of supporting materials make it possible to contain sensitive biomolecules for sensor diagnostic testing. These include environmental observations of water quality and/or warfare agents and physiological status monitoring.
If used as a “lab on a chip” diagnostic tool, how is your tool different from what we have seen before?
JU: Several features of self-supporting microfluidic technology make it superior to previous methods when used in “lab on a chip” applications. Conventional devices usually require large pieces of solidified polymer to encapsulate the microfluidic channels, resulting in large volumes.In contrast, our3D printingThe microfluidic sensor has a simple configuration, which consists of a sensing substrate and3D printingComposition of silicone channels.
Our equipment also does not have strict clean room manufacturing requirements, such as careful alignment of the equipment (usually more materials are required), while providing limited reuse functions. Compared with other lab-on-chip equipment, the flexibility of our manufacturing method also makes integrated 3D structures, multiplexed arrays, and multiple material types more complex.
3D printing
Microfluidic devices may have potential military surveillance applications” alt=”researcher’s
3D printing
Microfluidic devices may have potential military surveillance applications” width=”400″ height=”232″ />

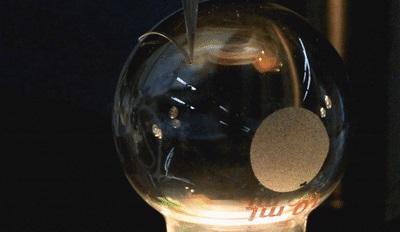

Researcher’s3D printingMicrofluidic devices may have potential military surveillance applications
What is unique about your new additive manufacturing method and what are its advantages?
Our method can design the printing tool path according to the geometry of the target surface, and “write” the microfluidic network directly onto the surface. Conformal printing also enables the rapid and customizable fabrication of microfluidic devices on biological surfaces such as human skin. Prior technologies such as stereolithography (SLA) and inkjet printing use ultraviolet curable resins to produce microfluidic chips, which are usually rigid after the material is cured. By printing highly elastic materials such as room temperature vulcanization (RTV) silicone, our method can create flexible and stretchable microfluidic structures with up to 350% strain at break.
Moreover, because the structure is self-supporting, the microfluidic device can be directly aligned and printed on the functionalized sensor array, so that the sensor element is pollution-free.In contrast, through other3D printingThe microfluidic device manufactured by the method usually temporarily fills the channel with residual resin or support material, which will contaminate the sensing surface.
Compared with other microfluidic manufacturing methods, rapid prototyping technology can also shorten the turnaround time, such as the use of PDMS for soft lithography, the use of plastic for machining or injection molding, and the use of paper substrates for printing. This helps to speed up development to move towards actual products and applications.
What is the potential of the technology you develop, especially in a military environment?
JU: The ability to have environmental and physical monitoring sensors with better performance and less burden on combatants will provide more and more information for situational awareness. For example, knowing that the water source is immediately contaminated without carrying heavy and power-hungry equipment on site is a major potential breakthrough.
In addition, the ability to monitor the physical condition of soldiers allows them to safely withdraw from the battlefield when needed, which also allows judgment to be removed from the soldiers’ hands. This new technology moves us towards these visions. Currently, these types of requirements are either impractical technology or none at all.
Are there any continuing plans in this research area? If so, how can the technology be developed and enhanced?
Now, in terms of military applications, there have been some research proposals that can be used to use this technology for biological detection of specific toxins, bacteria and viruses. This will be modular because it can be pre-programmed later and modified using pattern recognition responses to detect different specific targets.This technology can be used to create future “on-demand” sensors and quickly print all components on site to respond to threats in specific environments.
China3D printingNet original article!
(Editor in charge: admin)
