Price: $109.99
(as of Oct 05,2024 15:35:18 UTC – Details)
PLEASE CONTACT F1RSTLAYER DIRECTLY FOR TECH SUPPORT!
THE FIRMWARE FOR THIS SCREEN IS NOT OPEN SOURCE! YOU CANNOT CHANGE THE FIRMWARE FOR THIS PRODUCT EXCEPT TO EXCLUDE THE BLTOUCH! IF YOU DO NOT WISH TO USE THE BLTOUCH THEN PLEASE UPDATE THE FIRMWARE THAT IS LOCATED IN THE GOOGLE DRIVE FOLDER URL ON THE INSERT CARD WITH YOUR PRODUCT.
THIS PRODUCT DOES NOT COME WITH A BLTOUCH MOUNT so you will have to 3D Print one PLEASE GO ON THE THINGYVERSE WEBSITE TO DOWNLOAD A MOUNT URL FILE.
IF YOU HAVE A DUAL GEAR EXTRUDER/DIRECT DRIVE YOU WILL HAVE TO CHANGE YOUR E-STEPS/mm VIA PRONTERFACE OR OCTOPRINT. The tutorial to change your E-steps/mm is also located on the Google drive folder and the URL can be found on the insert card that comes with this product
RECOMMENDED E-STEPS/mm for dual gear extruders is 144.22.

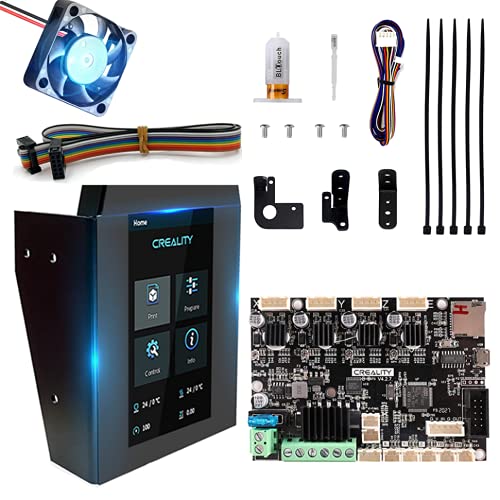

After downloading, print and then proceed to install the board, touch screen, silent fan and the BL Touch.

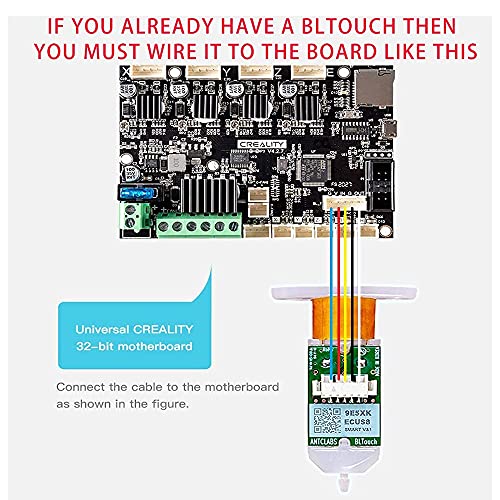

PLEASE ONLY USE THE WIRING DIAGRAM IN THIS LISTINGS PHOTOS TO ATTACH THE BLTOUCH TO THE BOARD.
This control board comes flashed with Ender 3 / Pro / V2 firmware that supports the touch screen and the Bltouch. Please note that the mainboard, touch screen and the Bl Touch must all be used for this product to work properly.
For all Ender 3 / Pro / V2 users, this is a PLUG AND PLAY drop-in installation kit APART FROM changing your E-steps if you have a dual gear extruder or direct drive.
> Please use tutorials on YouTube regarding calibrating your Z-offset.
Turn your Ender 3 from 2018 into a brand-new state of the art machine with silent stepper motor drivers, color display, and auto bed leveling functionality.
WARNING! This control board, Bl Touch and touch screen, silent fan and 4.2.7 silent board combo DOES NOT use open source and firmware and is not compatible with a filament runout sensor.
Package Dimensions:7 x 5 x 3.5 inches; 1.25 Pounds
Date First Available:March 23, 2021
Manufacturer:Creality Antclabs F1rst Layer
ASIN:B08ZSJJXRF

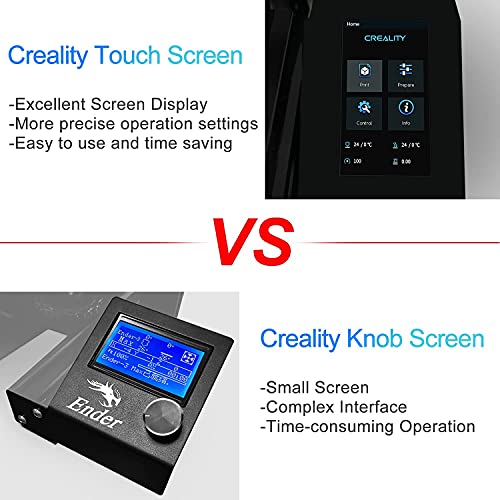

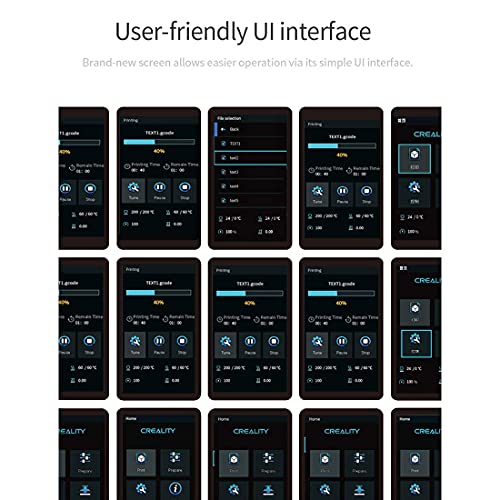

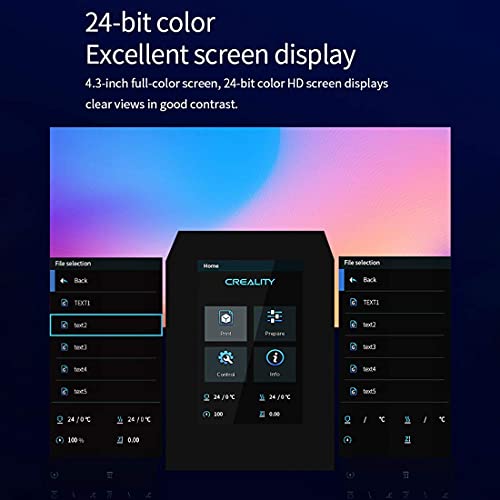

THE FIRMWARE FOR THIS SCREEN IS NOT OPEN SOURCE! YOU CAN’T CHANGE THE FIRMWARE EXCEPT TO EXCLUDE THE BLTOUCH! IF YOU HAVE A DUAL GEAR EXTRUDER/DIRECT DRIVE YOU WILL HAVE TO CHANGE YOUR ESTEPS/mm VIA PRONTERFACE/OCTOPRINT. TUTORIAL LINK IN PRODCT DESCRIPTION. Creality have just released this stunning 4.3” full color LCD touch screen. With the stroke of a finger, you can navigate between menus with features like one touch heating/cooling and touch-controlled filament feeding and un-feeding.
BL TOUCH MOUNT NOT INCLUDED IN THIS KIT. The BL Touch is an incredibly accurate and reliable auto-mesh bed leveling sensor that probes individual spots for differences in Z height on any print surface such as glass, aluminum, PEI, BuildTak with incredible accuracy to 0.005mm. This is great for users with small imperfections or warping in their print surface due to manual leveling. Includes 1.5m extension cable for neat cable management solutions. BLTOUCH WIRING DIAGRAM IN PRODUCT PHOTOS!
This is the newest version of Creality’s 4.2.7 32 Bit silent control board with authentic TMC2225 Trinamic stepper drivers which greatly reduce the sound of the stepper motors during use. This new 4.2.7 control board has been shown to improve print quality for many users. This upgrade kit comes with Plug and Play functionality for any Ender 3 / Pro or V2. This entire hardware swap will take less than 1 hour and quickly turns your stock Ender into a touch operated printer in just one upgrade!

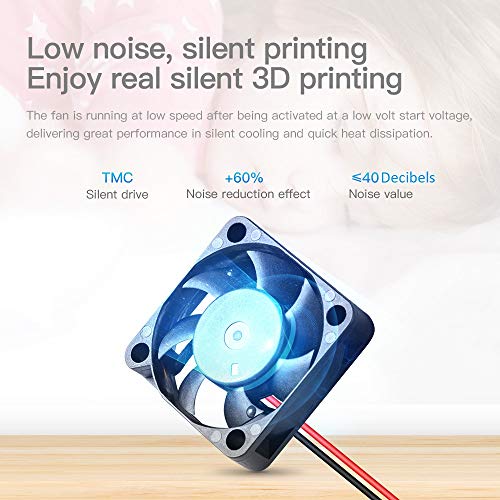

Amazon customer support is NOT suited for providing the Tech Support needed for this 3D Printing product. PLEASE CONTACT F1RSTLAYER DIRECTLY The upgraded silent fan included can be placed on the hotend or the control board however since the hotend fan is running at all times, it is suggested to be installed there. To avoid needing to re-route all the wires through the wire harness, you can cut the wires from the old fan and splice them onto the new silent fan for a pain free swap!
This control board and touch screen combo DO NOT use open source firmware and are not compatible with ANY hardware or software additions that require a firmware update. This kit is completely Plug-and-Play and will provide your Ender 3 with full functionality as is, while also allowing for the BL Touch upgrade in the future should you choose to purchase it. Unsupported hardware includes, but is not limited to things such as: filament run-out sensor, dual gear extruder, and direct drive extruder!
