Product Description

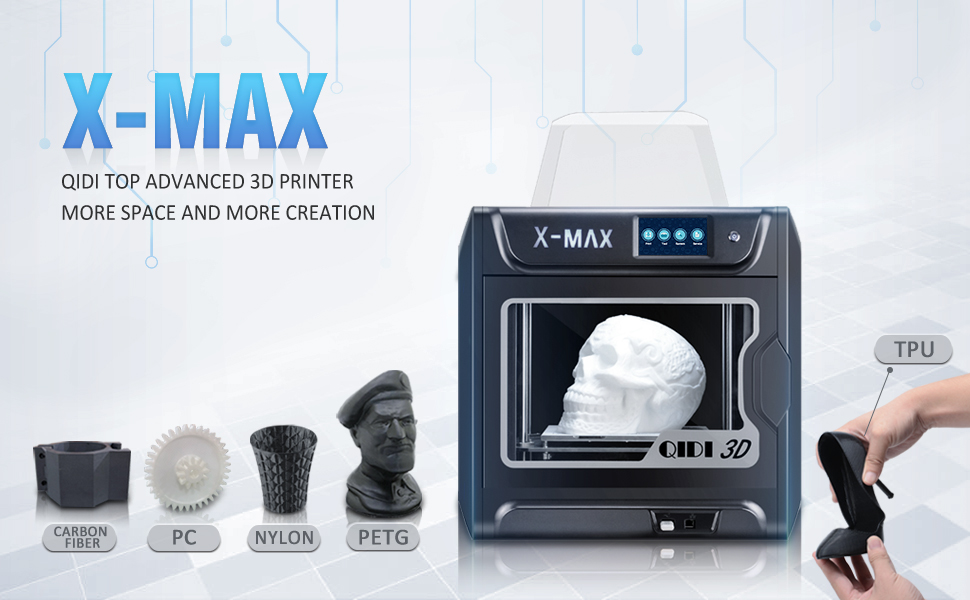

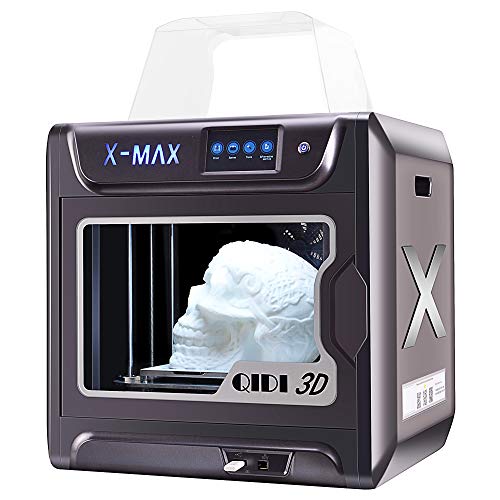

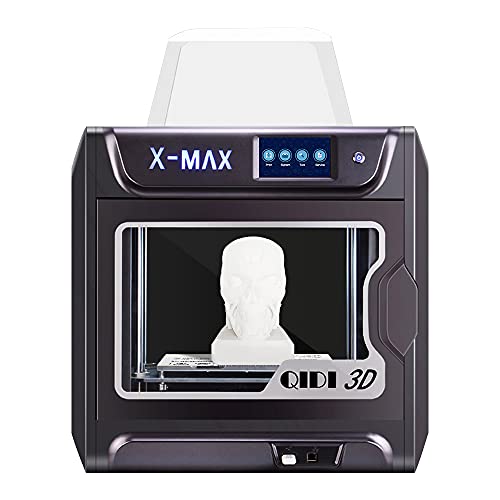

QIDI TECHNOLOGY has been focusing on developing high quality, high performance 3D printers. We have 7 years of manufacturing experience,The X series 3d printers we developed are very popular among users.,the user’s favorable rate keeps Amazon’s first place all the year round .Qidi Technology redefine the 3D printer. The X-max is the top advanced 3d printer in Qidi Technology, designed by the international top team of industrialists. The company’s purpose in creating X-max is:1. To enable the users to print larger sizes.2. To allow the users not only can print PLA, ABS,TPU, but it also can print Nylon, Carbon fiber, PC and other high-performance materials. It has wider applications.3. To allow the users experience more quality, more stable printer. The Max uses the best workmanship, the best accessories.4. X-max also has lots of features such as quiet printing,air purification, Wifi connection function, power outage.5. To let the users experience the best service, a good product should have the excellent service.
Main Innovation:
Double Z-axis:
Updated the Single Z-axis to Double Z-axis, more stable and solid for large size prints.
Innovative design of double z-axis motor structure with 4 pieces Imported 12mm axis.
Maximum print size is 11.8”x9.8”x11.8”(300(L)x250(W)x300(H)mm)
Two Different Ways for Place the Filament:
The first creation of the two different ways for place the Filament.
A. Place the filament outside: The filament feed more smoothly while printing PLA, TPU, PETG. It compatible with any brands of 1.75mm filament.
B. Place the filament inside: For printing advanced material such as Nylon, Carbon Fiber, PC, which requires an enclosed constant temperature printing.
Newly Developed Extruder:
Two Sets of Qidi Tech Third Generation Extruder Assembly with Different Capability.
A extruder : For printing general material such as PLA, ABS, TPU ( already installed on the printer).
B extruder : For printing advanced material such as Nylon, Carbo Fiber, PC.
QIDI TECH One-to-one Service:
If any problems with the X-Max 3d printer, please contact Qidi Tech team and we will reply in 12 hours.
Key Features:

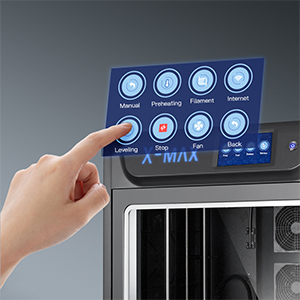

5.0 inch Touchscreen:
5.0 inch touchscreen. Larger and user friendly interface makes it more intuitive and easy to operate.

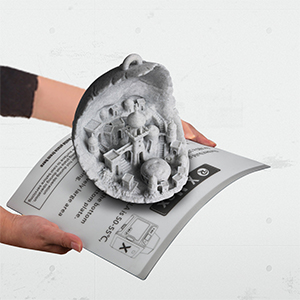

Removable Plate:
Movable extraction, curved metal plate, can be used repeatedly, it is more convenient to remove the model after printing.
The plate’s front side can print normal filaments, such as PLA, ABS,TPU,PETG.
The plate’s reverse side can print advanced material such as Nylon, Carbon Fiber, PC.
Qidi Print Slicer:
The Qidi Tech latest generation slicer software version 5.6.4: Redesigned UI interface of Qidi Print software is more convenient to operate. It has been changed the software’s slicing algorithm and improves the print quality by 30 percent and speed by 20 percent. The Qidi Print software compatible with all types of Qidi Tech 3d printers, life-time free, the alternative to paid software ( If you have the old version, please download the latest version on Qidi TechI official website).
Technology
Fused Deposition Modeling
Fused Deposition Modeling
Fused Deposition Modeling
Fused Deposition Modeling
LED Display Photocuring
LED Display Photocuring
Build Volume
11.8”x9.8”x11.8”(300x250x300mm)
10.6”x7.9”x7.9”(270x200x200mm)
9.1”x5.9”x5.9”(230x150x150mm)
6.69” x 5.9” x 6.29” (170x150x160mm)
5.11‘’x2.75‘’x5.90“ (130x70x150mm)
8.46″x5.11″x7.87″(215x130x200mm)
Filament Types
PLA,ABS,TPU,PETG,Nylon,PC,Carbon fiber,etc
PLA,ABS,TPU,PETG,Nylon,PC,Carbon fiber,etc
PLA,ABS,TPU, PETG,HIPS
PLA,ABS,TPU ,PETG
Resin
Resin
Platform Support
Double Z axis
Double Z axis
Single Z axis
Single Z axis
Double Z-axis linear guide
Double-line guide rails, and the middle is equipped with industrial-grade ball screws.
Extruder Configuration
1 set of professional printing PLA, ABS TPU high stability extruder, Add 1 set of high performance extruder for printing PC, Nylon, Carbon fiber.
1 set of professional printing PLA, ABS TPU high stability extruder, Add 1 set of high performance extruder for printing PC, Nylon, Carbon fiber.
1 set of professional printing PLA, ABS TPU high stability extruder
1 set of professional printing PLA, ABS TPU high stability extruder
Printing Plate
heated, removable plate
heated, removable plate
heated, removable plate
heated ,removable plate
Support
1-Year with Infinite Customer Support
1-Year with Infinite Customer Support
1-Year with Infinite Customer Support
6 Months with Infinite Customer Support
1-Year with Infinite Customer Support(the 2K LCD and FEP film are excluded ) .
1-Year with Infinite Customer Support(the 2K LCD and FEP film are excluded ) .
Filament Diameter
1.75mm
1.75mm
1.75mm
1.75mm
Printing Extruder
Single Extruder
Single Extruder
Dual Extruder
Single Extruder
Layer Thickness:
0.05mm-0.4mm
0.05mm-0.4mm
0.05mm-0.4mm
0.05mm-0.4mm
0.025mm-0.2mm
0.025mm-0.2mm
Is Discontinued By Manufacturer:No
Package Dimensions:28 x 28 x 26 inches; 61.73 Pounds
Item model number:QDMAX201905
Date First Available:October 11, 2018
Manufacturer:RUIAN QIDI TECHNOLOGY CO.,LTD
ASIN:B07JBXVCWG
Country of Origin:China
X-Max 3d printer. Since 2018, more than 10,000 new users worldwide have chosen X Max 3d printer every year. Through continuous user feedback, we continue to iterate on the technology. At least two technical upgrades a year, including software, Mechanical structure, core accessories, extruder.QIDI TECH hope to create value for users, create better product user experience and build the best brand of 3D printers in the world.
2 sets of extrusion systems: X-Max is equipped with 2 sets of extruders for different filaments. Extruder A: It is suitable for printing filaments such as PLA,ABS,PETG,TPU,etc. The maximum temp is 240℃. Extruder B is a high-temp extruder. Different from other stainless steel high-temperature extruder, XMax’s nozzle adopts tungsten steel and stainless steel material at the rear. Overcoming the problem of high-temp extruder which only can print with PC, nylon, but not print with carbon fiber.
Double Z-axis structure. XMax innovatively adopts higher-cost industrial-grade dual Z-axis support and works in conjunction with two axes motors. Large-size 3D printers are more stable when printing larger models without jitter. Especially when the model is printed continuously for more than 24 hours, the accuracy remains stable. It is very suitable for engineering and mass production of professional quality printing.
Industrial quality: X-Max 3d printer’s shell is made of high-quality engineering plastics, which is beautiful and safe. X Max uses high-standard accessories, motors, motherboards, bearings, etc. X Max 3d printer can be used for more than 2 years with high intensity and long time to print the parts they need. At the same time,QIDI TECH has also gained excellent reputation from a large number of users. This is due to our strict pursuit of X Max product quality.
QIDI TECH Professional Amazon after-service team,if you have any problem about our 3d printer,we will reply to you within 24 hours.Free one-year warranty.
