Product Description
Brand Manufacturing:
For freedom to make through 3D printing technology
ANYCUBIC has gathered a professional 3D R&D team
Committed to creating a high-quality desktop 3D printer
Was rated as the “Most Popular 3D Printer Brand”
3D technology brings more possibilities to life

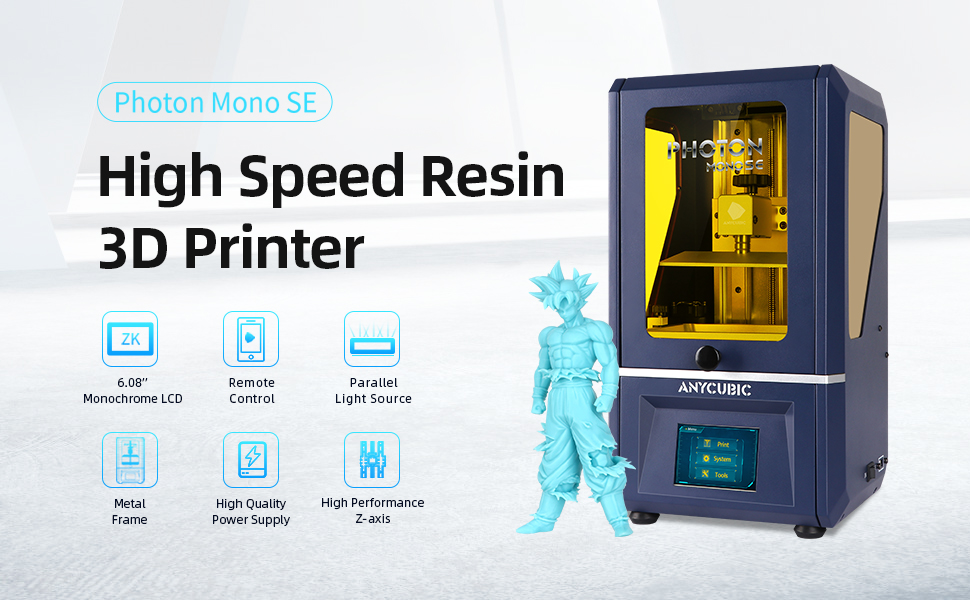

6.08” Monochrome LCD
Remote Control
Parallel Light Source
Metal Frame
High Quality Power Supply
High Performance Z-axis

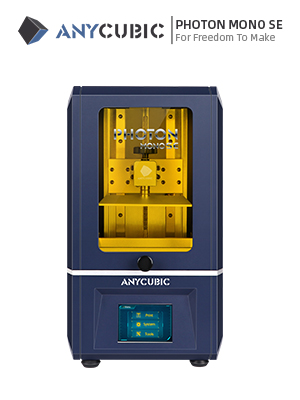

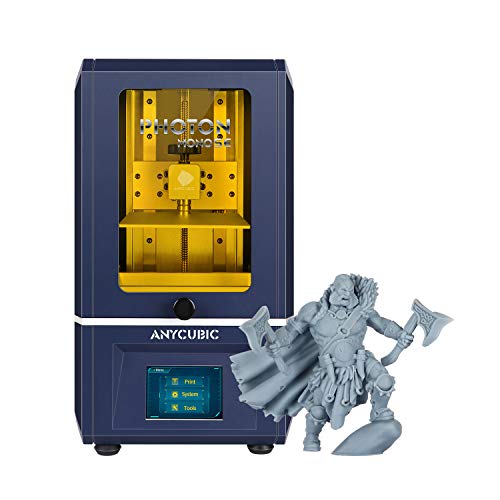

ANYCUBIC Photon Mono SE LCD Resin Printer
Technical Specifications
Operation : 3.5 inch Touch Screen
Software : ANYCUBIC Photon workshop
Connectivity : USB
Technology: LCD-based SLA
Light-source: high-quality filament（wavelength 405nm）
XY Res.: 0.051mm 2560*1620（2K）
Z Axis Res.: 0.01mm
Layer Res.: 0.01 ~ 0.15mm
Printing Speed: MAX 80mm/h
Rated Power: 55W

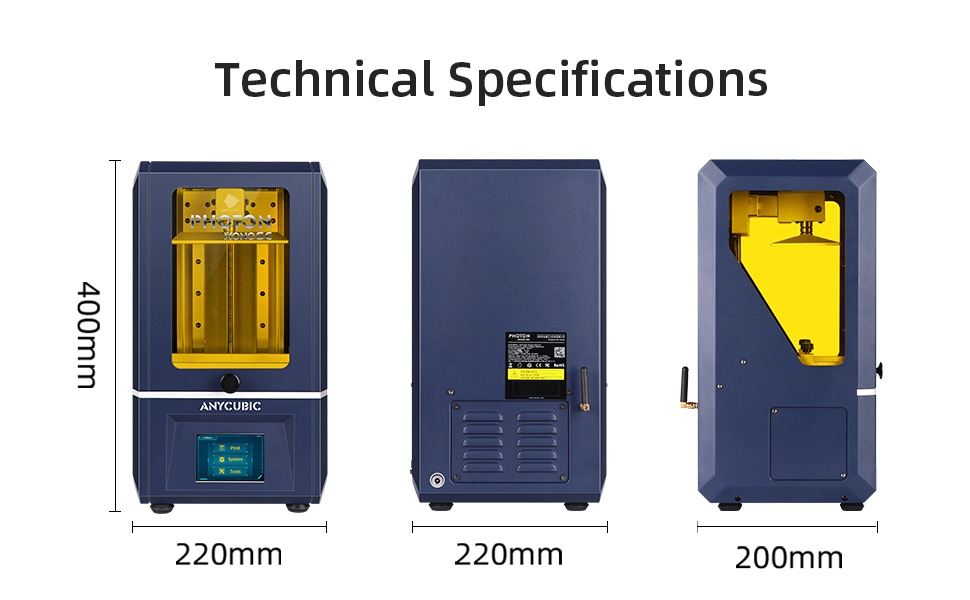

Physical Dimensions
Printer Size: 220mm(L)*200mm(W)*400mm(H)
Build Volume: 130mm(L）*78mm(W）*160mm（H）
Material: 405nm UV Resin
Net Weight: ~8.2 kg
Gross Weight: ~9.7kg

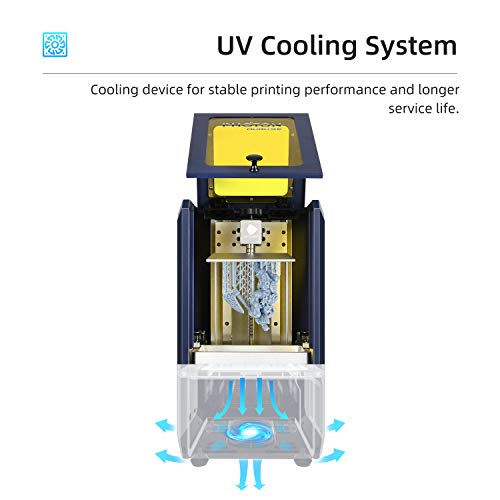

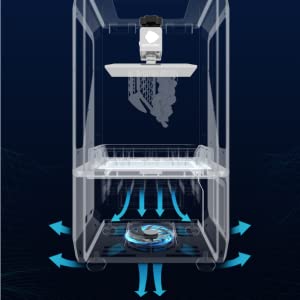

UV Cooling System
Cooling device for stable printing performance and longer service life.

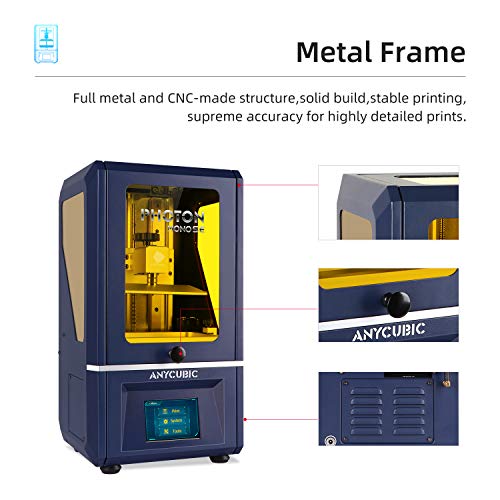

Full metal and CNC-made structure, solid build, stable printing,
supreme accuracy for highly detailed prints.

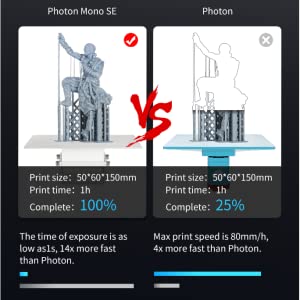

Fast Printing Speed
The exposure time is reduced to 1 second. The printing speed is 4 times faster than the speed of an RGB screen.

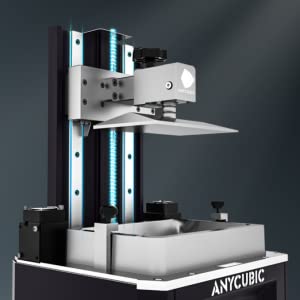

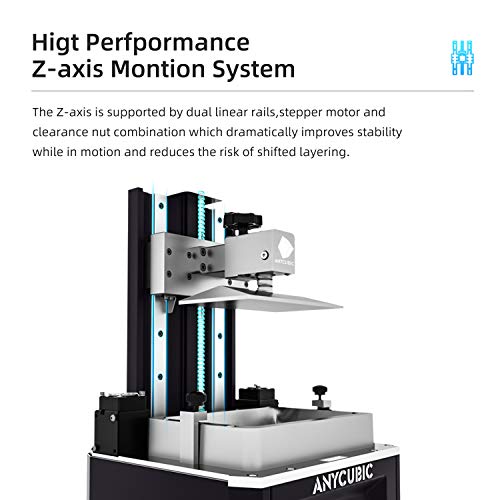

High Performance Z-axis Motion System
The Z-axis is supported by dual linear rails，stepper motor and clearance nut combination which dramatically improves stability while in motion and reduces the risk of shifted layering.

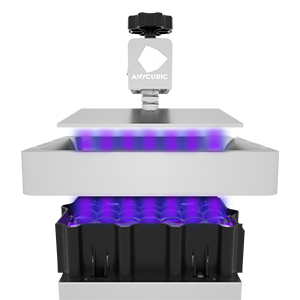

New Matrix Parallel Light Source
It has a more uniform exposure, higher efficiency and better heat dissipation.
The light is more uniform, the detail printing is better.

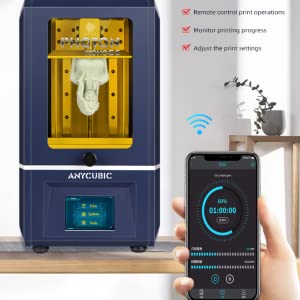

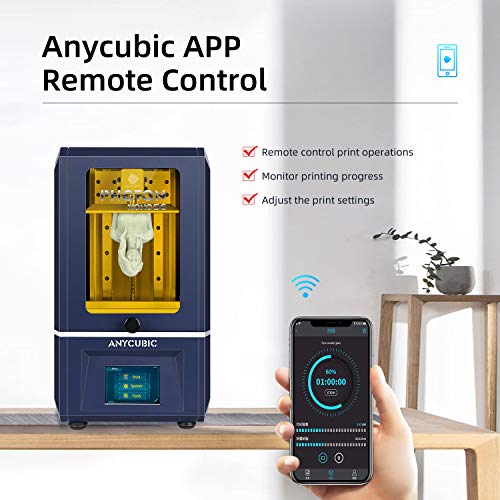

Anycubic APP Remote Control
Remote control print operations
Monitor printing progress
Adjust the print settings
Upgraded Design For a Better User Experience

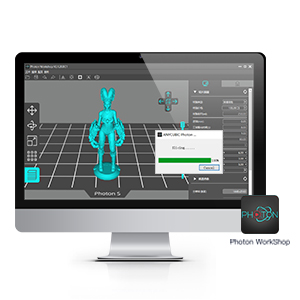

Anycubic Slicing Software
More powerful functions, up to 16 times anti-aliasing, practical functions continue to be updated
-Quick slice -Model hollowed out
-Model cutting -Model lettering
LCD Type
6.08 inch Mono LCD
5.5 inch RGB LCD
2.8 inch Touch Screen
6.08 inch Mono LCD
8.9 inch Mono LCD
XY Resolution
2560×1620 (2k)
2560×1440
854×480 (480P)
2560×1620 (2K)
3840×2400 (4K)
Build Size
5.11″x 3.07″x 6.3″ 130x78x160mm
4.53″x 2.56″x 6.49″ 115x65x165mm
3.81″x2.12″x5.9″ 97x54x150mm
5.11″x3.14″x6.5″ 130x80x165mm
7.55″x4.7″x9.6″ 192x120x245mm
Printing Speed
80mm/h
20mm/h
20mm/h
50mm/h
60mm/h
Z Axis Accuracy
0.01mm
0.00125mm
0.01mm
0.01mm
0.01mm
Z Axis Accuracy
0.01mm
0.00125mm
0.01mm
0.01mm
0.01mm
Layer thicknessZ Axis Accuracy
0.01-0.15mm
0.01-0.2mm
0.01-0.2mm
0.01-0.15mm
0.01-0.15mm
Materials
405nm UV-Resin
405nm UV-Resin
405nm UV-Resin
405nm UV-Resin
405nm UV-Resin
Package Dimensions:21.5 x 12 x 11.5 inches; 23.05 Pounds
Date First Available:December 22, 2020
Manufacturer:ANYCUBIC
ASIN:B08R5R4FWG
HIGH PRECISION:Photon mono se adopts 2k 6.08-inch black and white screen, 2560*1620 (2K) high resolution brings high precision printing, high light transmittance, and service life of more than 2000h, which makes the printing details displayed vividly
WIFI CONTROL:Photon mono se adopts Anycubic 3D app control, remote control printing operation, can monitor printing progress in real time, and adjust printing parameters at any time
4X FAST PRINTING:Anycubic 3d printer has fast printing function, the printing speed is 4X that of ordinary color screens, the normal exposure time is as low as 1s, the printing speed MAX 80mm/h is 4 times higher than that of Photon, and the printing size is 130 x 78 x 160mm
EFFICIENT HEAT DISSIPATION SYSTEM: Anycubic Photon mono se exclusive UV heat dissipation channel, efficient cooling, improving printing quality and service life
WARRANTY AND SERVICE: We provide 1 year warranty for the entire printer( (exclude LCD screen & FEP film) . If you have any questions, please contact “wijorlan” for technical support, we will do our best to serve you
