Product Description

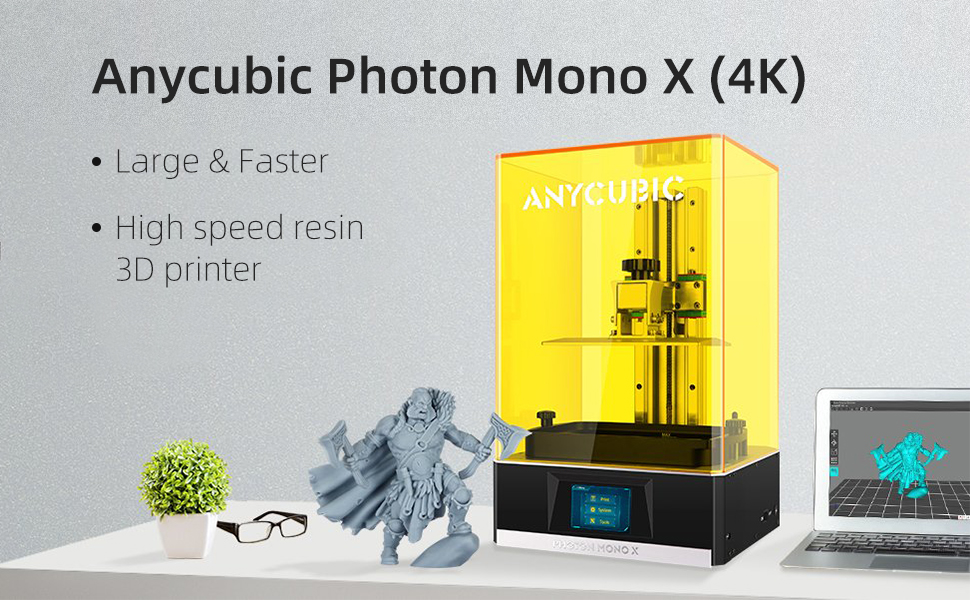

mono x 3d printermono x 3d printer

Please Note: Before the formal printing, please check whether the resin tank film of the feeder is broken or deformed

In addition, the LCD screen of the machine has a protective film. Please do not tear off this protective film during the machine test. It is completely sure that the FEP release film of the resin tank has no leakage problem, and the formal printing is carried out.

Tips: FEP release film is divided into three layers, the release film is in the middle, the first and third layers of FEP protective film can be placed on the LCD screen for test printing protection, if the release film is damaged, it can be effective Prevent resin from sticking to the LCD screen

Thank you for your support and attention to ANYCUBIC

If the slicing software of Photon Mono X is missing, please send us a message and we will provide you with a download link

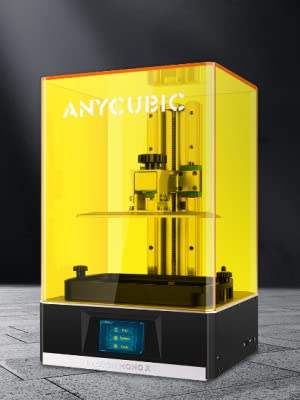

anycubic mono xanycubic mono x

anycubic 3d printeranycubic 3d printer

Brand Manufacturing:

For freedom to make through 3D printing technology

ANYCUBIC has gathered a professional 3D R&D team

Committed to creating a high-quality desktop 3D printer

Was rated as the “Most Popular 3D Printer Brand”

3D technology brings more possibilities to life

APP Remote Control

4K Monochrome

Fast Printing Speed

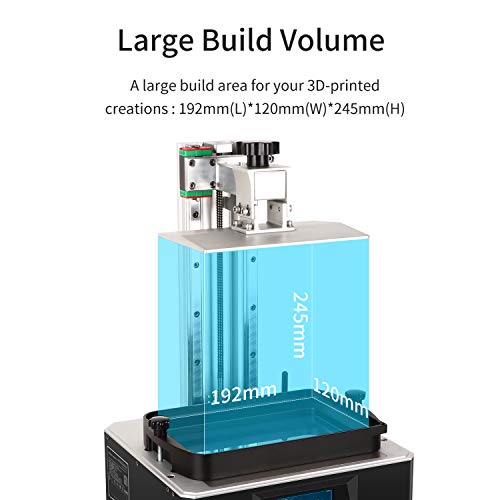

Large Build Volume

Upgrade UV Light

Stability and High Precision

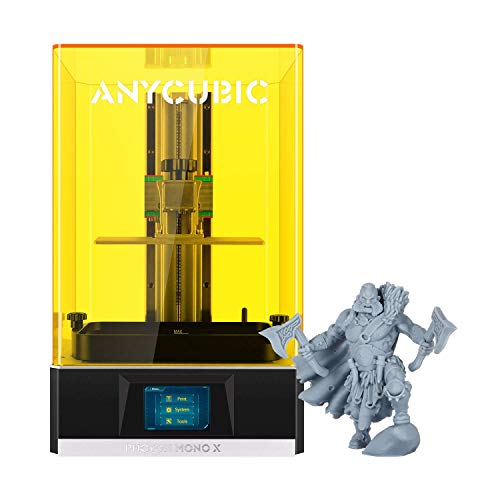

ANYCUBIC Photon Mono X Resin 3D Printer

Technical Specifications:

Operation : 3.5 inch Touch Screen

Software : ANYCUBIC Photon workshop

Connectivity : USB, Wifi

Technology: LCD-based SLA

Light-source: high-quality filament(wavelength 405nm)

XY Res.: 0.050mm 3840*2400(4K)

Z Axis Res.: 0.01 ~ 0.15mm

Layer Res.: 0.01 ~ 0.2mm

Printing Speed: MAX 60mm/h

Rated Power: 120W

Physical Dimensions:

Printer Size: 270mm(L)*290mm(W)*475mm(H)

Build Volume: 192mm(L)*120mm(W)*250mm(H)

Package Size: 375*395*600mm

Material: 405nm UV Resin

Net Weight: ~11kg

Gross Weight:~14kg

Brushed Aluminum Platform

Brushed Aluminum Platform

Full funcational touch screen menu

Full funcational touch screen menu

Marks in Resin Vat

Marks in Resin Vat

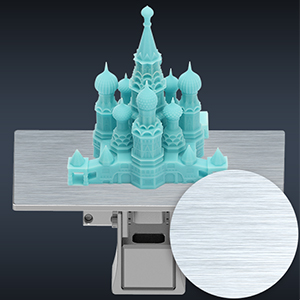

Brushed Aluminum Platform

Significantly enhances the adhesion beteween platform and printers.

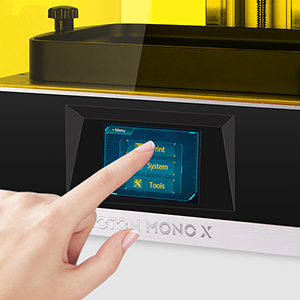

Full funcational touch screen menu

The New UI is highly intuitive and responsive.

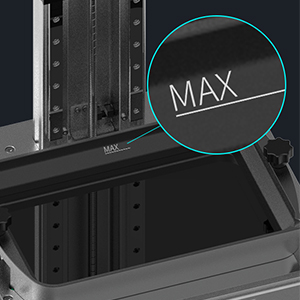

Marks in Resin Vat

Accurately view how much resin is left with the marks in the resin vat.

Safe design

Safe design

Efficient cooling system

Efficient cooling system

Safe power supply

Safe power supply

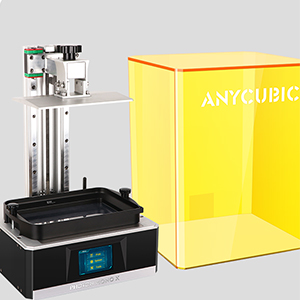

Safe design

Printer will be immediately shut off if the top cover has been removed.

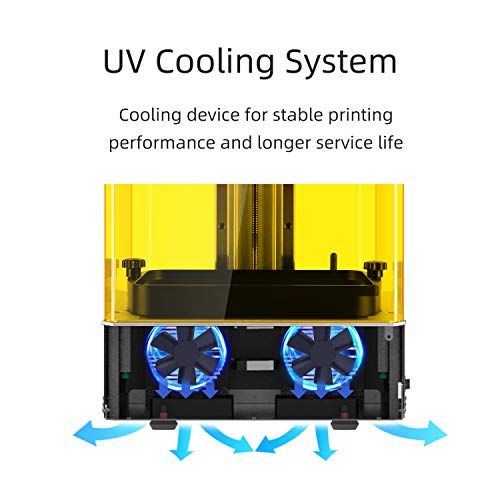

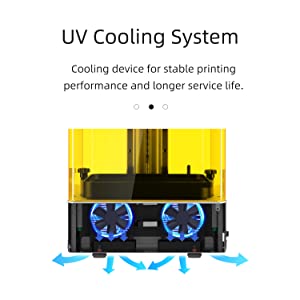

Efficient cooling system

Exclusive UV heat dissipation channel, efficient cooling, improve printing quality and service life, reduce maintenance costs, and use more assured

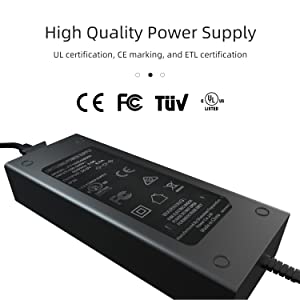

Safe power supply

Pass TUV CE ETL international safety certification

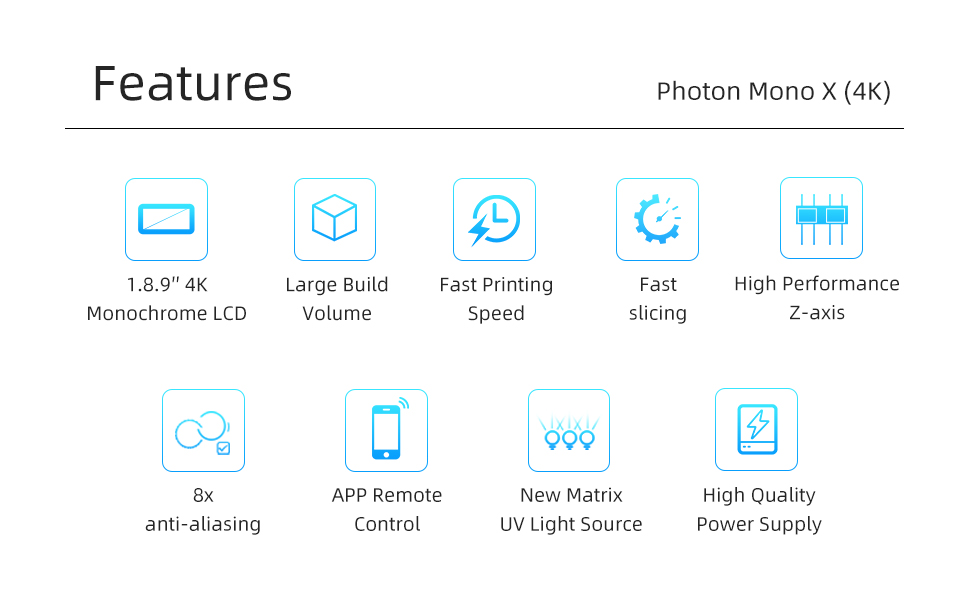

featurefeature

applicationapplication

LCD Type

6.08 inch Mono LCD

6.08 inch Mono LCD

8.9 inch Mono LCD

XY Resolution

2560×1620 (2k)

2560×1620 (2K)

3840×2400 (4K)

Build Size

5.11″x 3.07″x 6.3″ 130x78x160mm

5.11″x3.14″x6.5″ 130x80x165mm

7.55″x4.7″x9.6″ 192x120x245mm

Printing Speed

80mm/h

50mm/h

60mm/h

Z Axis Accuracy

0.01mm

0.01mm

0.01mm

Layer thicknessZ Axis Accuracy

0.01-0.15mm

0.01-0.15mm

0.01-0.15mm

Materials

405nm UV-Resin

405nm UV-Resin

405nm UV-Resin

Package Dimensions‏:‎24.3 x 15.6 x 15 inches; 33.65 Pounds
Date First Available‏:‎September 18, 2020
Manufacturer‏:‎ANYCUBIC
ASIN‏:‎B08JGH83VS

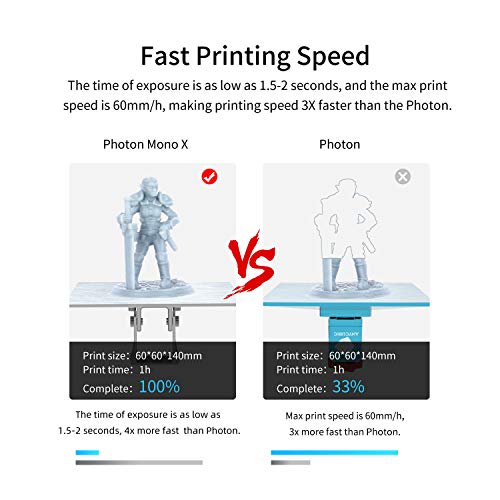

3X Fast Printing: single-layer exposure only takes 1-2 seconds, and the printing speed is Max 60mm/h, which is 3 times faster than ordinary resin printers. Do you want to finish printing faster? This printer help you to obtain higher quality models in a shorter time.

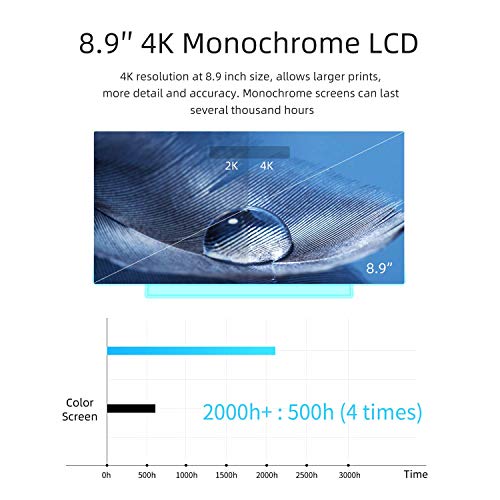

4K Monochrome Screen: ANYCUBIC Photon Mono X is a new UV Photocuring 3D printer with ultra-high resolution (3840*2400 pixels), highly restored details, and the screen service life is up to 2000h, more durable than ordinary color screen.
APP Remote Control & Large Printing Volume: Use this Mono X UV Photocuring LCD 3D Printer to realize remote printing management anytime and anywhere, monitor printing progress in real time, and adjust printing parameters at any time. In order to achieve the creation needs of larger models, it has a surprising printing volume, and printing volume size 192 * 120 * 250mm.

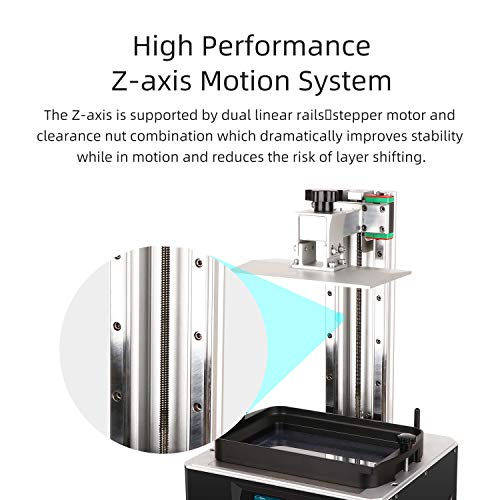

Double Linear Guide: Z-axis adopts the combination of double linear guide + screw motor + anti-backlash nut, improve the stability of Z-axis, run more stable, and eliminate printing layer lines. Independently researched and developed Anycubic slicing software, which is more powerful, supports 8 times anti-aliasing and smoother printing accuracy.
New Matrix UV Light Source: Using quartz lamp beads, a new generation of new matrix design, the light source is more uniform, and it can be used with 4K monochrome screen to achieve high-precision printing. The resin 3D printer contains exclusive UV heat dissipation channels, which can efficiently cool down.
