Product Description

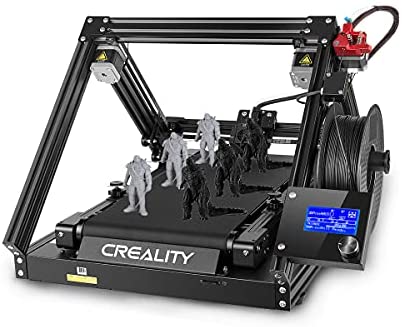

DESKTOP SIZE 3D PRINTER

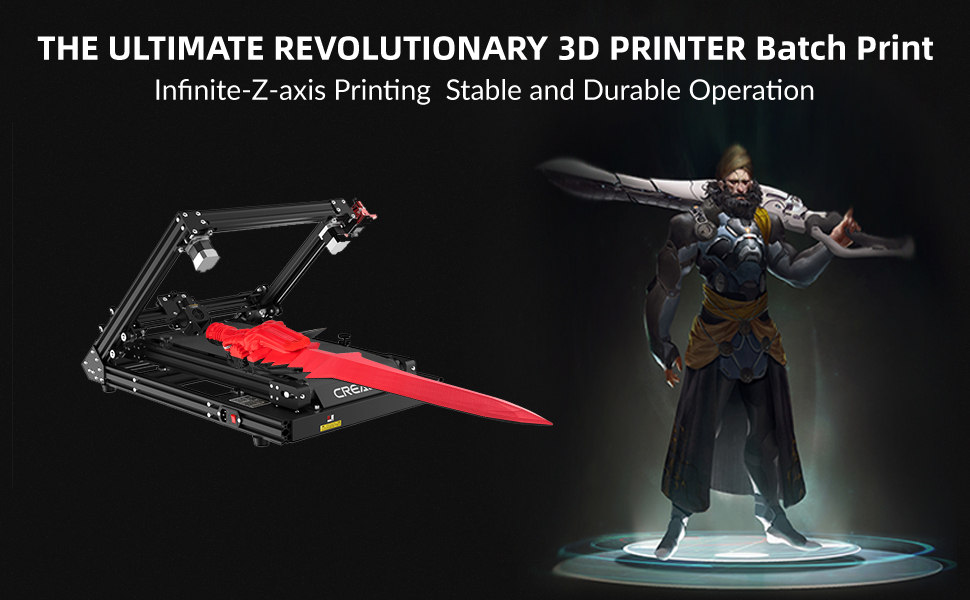

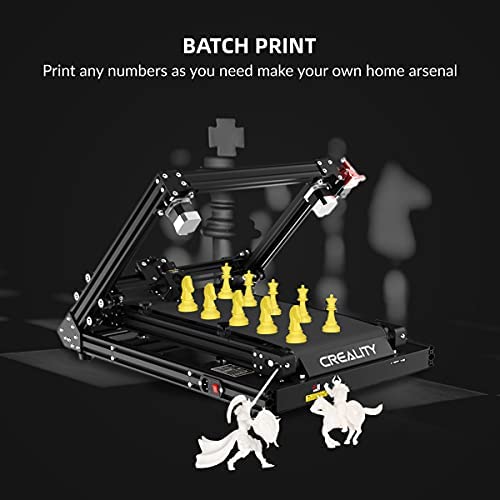

3DPrintMill is a revolutionary creative product, which braaks through the traditional gantry structure. It can be easily achineve batch print with a desktop size.

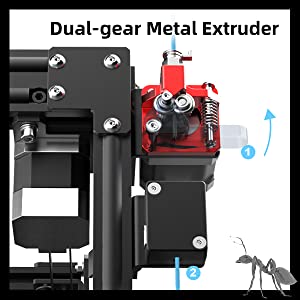

DUAL-GEAR METAL EXTRUDER
High-quality dual-gear metal extruder, combined with the 45 degrees slanting nozzle turns more than 200 hours of continous printing into reality.

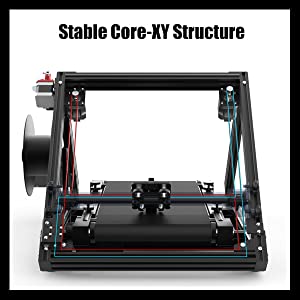

STABLE CORE-XY STRUCTURE
The stable and sturdy Core-xy precision structure with isosceles right triangle support gives you an extraordinary printing experience.

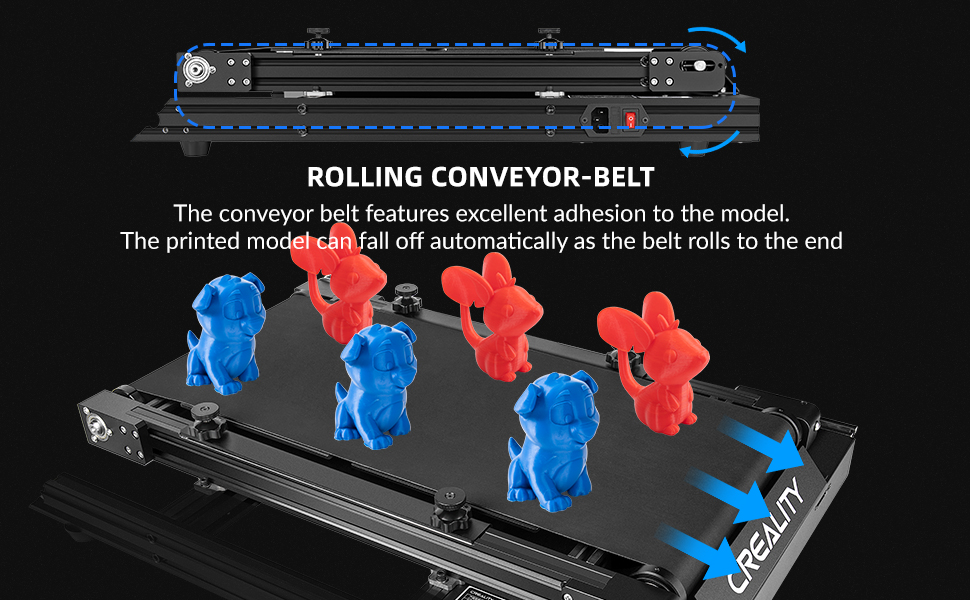

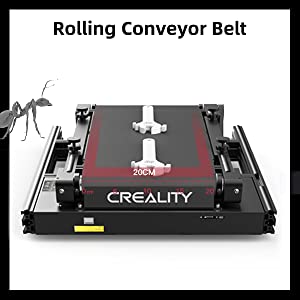

ROLLING CONVEYOR BELT
Made of wear-resistant material material, the conveyor belt features excellent adhesion to the model. The printed model can fall off automatically as the belt rolls to the end, thus free your hand.

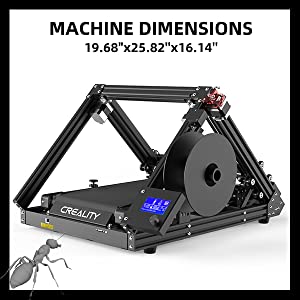

MACHINE SIZE
DUAL-GEAR METAL EXTRUDER
STABLE CORE-XY STRUCTURE
ROLLING CONVEYOR BELT
BRAND
Creality
MODEL
3DPrintMill
FRAME MATERIAL
Aluminum Alloy
MOLDING TECHNOLOGY
FDM
PRINT SIZE

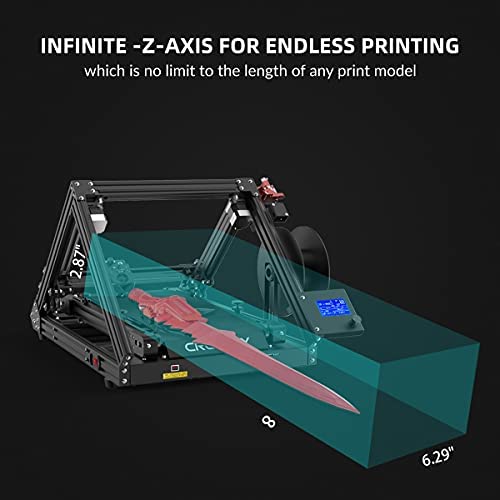

200 * 170 * ∞mm (7.87″*6.69″*∞”)
PRINTING PRECISION
±0.1mm
NOZZLE DIAMETER
0.4mm
NOZZLE QUANTITY
1
NOZZLE TEMPERATURE
≤240℃
HOTBED TEMPERATURE
≤100℃
LAYER THICKNESS
0.1mm-0.4mm
INPUT VOLTAGE
AC 200-240V, 50/60Hz
OUTPUT VOLTAGE
DC 24V
POWER
350W
WORK MODE
Online or SD Card
FILE FORMAT
STL/OBJ/AMF
WHAT IS IN THE PACKEGE?
1 X/Y Axis Belt Assembly 1 Bottom Belt Assenbly 1 Spool Holder 1 200G Filament 1 Disply Kit 2 Profile Bracket
WHAT IS IN THE TOOLBAGE?
Diagonal pliers x1 Needle x1 Blue line claw x2 Cabel tie x10 Pneumatic connertor x2 MST nuts x6 Feeler x1 Teflon tube x1 Nozzles x2
Hexagon socket flat round head screw M5x18 X10
Hexagon socket head spring washer combination screw M5X45 x4
Hexagon socket flat round head screw M5X8 x6
Hexagon socket head spring washer combination screw M5X12 x4
Hexagon socket flat round head screw M5X12 x6
Power Cabel x1 Socket wrench x1 Wrenches and screwdrivers x1 Storage card and card reader x1 Photoelectric switch line x1

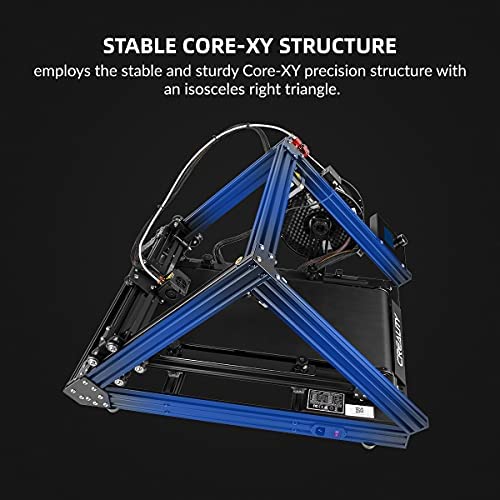

STABLE COREXY STRUCTURE: The stable and sturdy CoreXY precision structure with isosceles right triangle support gives you an extraordinary printing experience
NYLON CONVEYOR BELT: Made of wear-resistant Nylon, the conveyor belt features excellent adhesion to the model. The printed model can fall off automatically as the belt rolls to the end, thus free your hand. Strong adhesion| Hassle-free removal | Wear-resistant. Well-balanced conveyance.

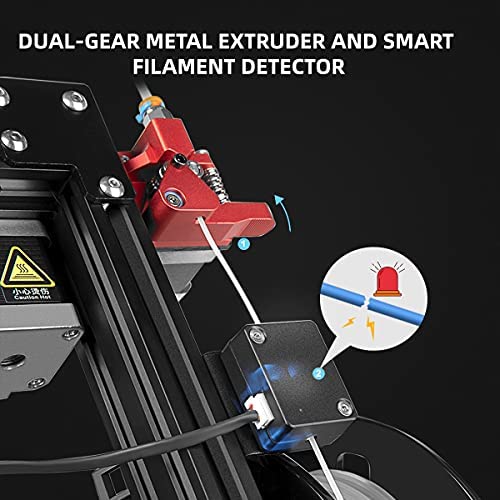

DUAL GEARS METAL EXTRUSION MECHANISM: High-quality dual gears metal extrusion, combined with the 45 degrees slanting nozzle realizing constant printing of ＞200 hours without pressure.
UNIQUE 45° PRINTING ANGLE: The unique 45 ° angle design offsets the limitations of the vertical nozzle structure. Equipped with a high-performance nozzle kit, it achieves continuous printing along the horizontal Z-axis.
ADAPTIVE BROADBAND POWER SUPPLY: The brand 24 V / 350 W power supply can automatically adapt to the global AC100-120V/ 200-240V. Rest assured of the system stability.
FILAMENT BREAKAGE DETECTOR: Whenever there is a possible accident like filament run-out or filament breakage, the smart sensor forces the machine to suspend printing. Printing will be automatically resumed after the new filament feed-in.
