Product Description
About Us
Dawnblade is committed to providing novel, practical and high-quality products for every customer.
Currently Main products is 3D printer accessories, most of which are matched with Creality printer.
In the future, we will continue providing more 3D printer accessories for every customer, so stay tuned.

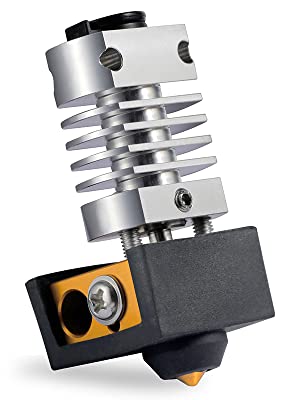

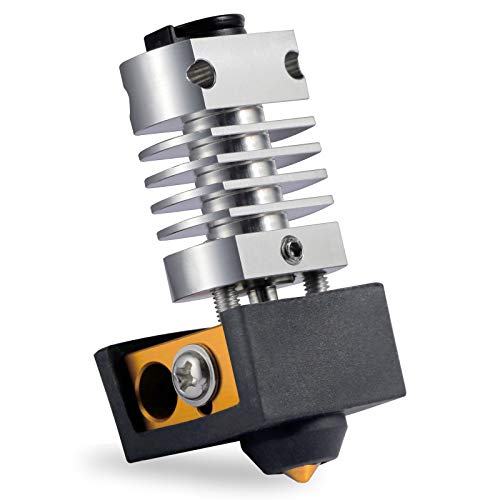

MK8 All Metal Hotend Kit
All metal structure heat sink, provides stronger heat dissipation capacity, avoiding filament early melting in heat sink.
TC4 Titanium Alloy Heatbreak, strong heat insulation, significantly reducing heat conducted to heatsink.
Extreme smooth inner wall, flat contact surface, avoiding clog caused by filament leakage.
All metal heat sink
Titanium alloy break
Smooth inner wall
Precise connection
Extreme Smooth Parts

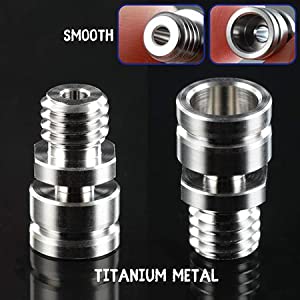

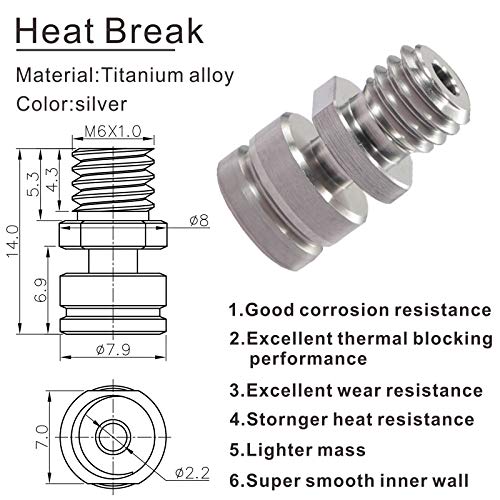

Phaetus Original Heat Break
Super smooth inner wall, lower resistance.
Flat contact surface, avoiding leackage.

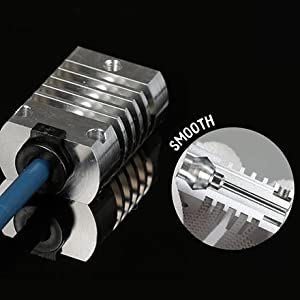

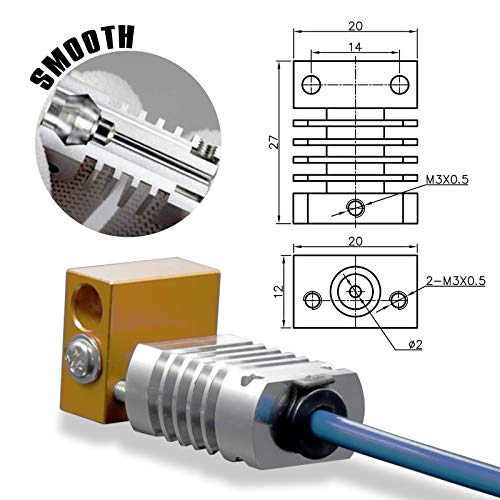

Phaetus Original Heatsink
Super smooth inner wall, ensuring filament extrusion smoothly.

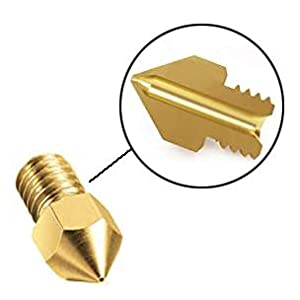

Creality Original MK8 Brass Nozzle
High precise, reducing probability of clog.
Detailed Information

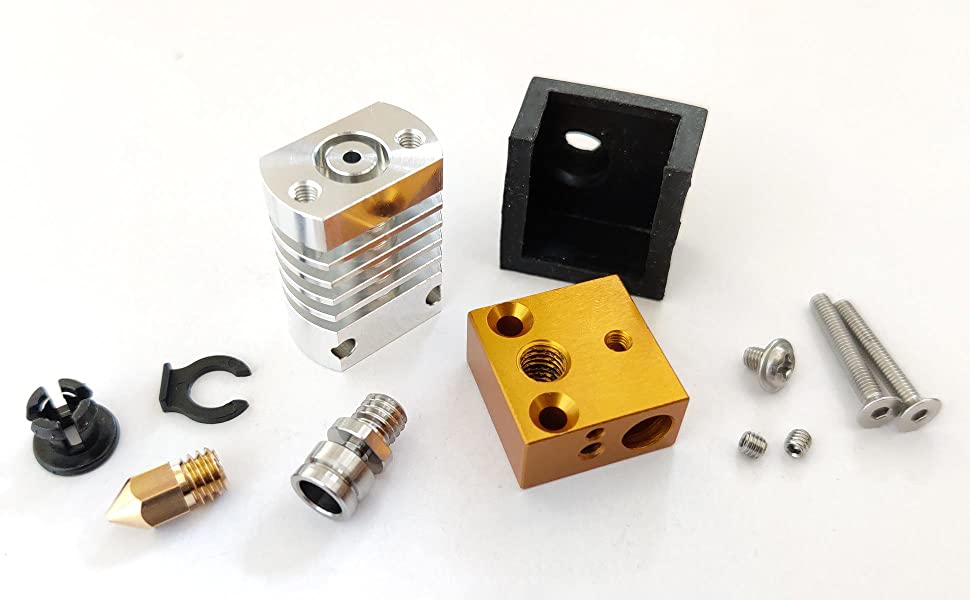

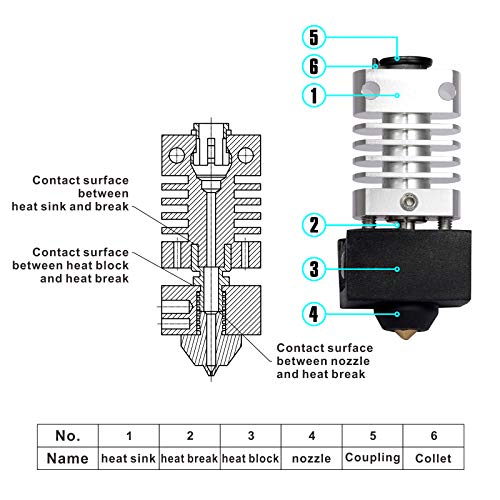

Structure Description
This kit is used to be MK8 hotend upgrade replacement parts.
The heatsink and heat break are produced by Phaetus.
Heat block and nozzle are produced by Creality.

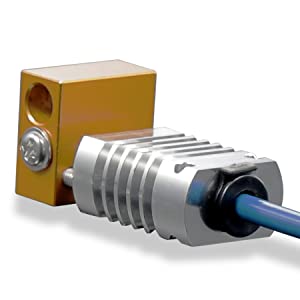

The feeding port of the heatsink is designed like Ultimaker, no pneumatic fittings is needed.
Applicable Scene
Fit for filaments whose nozzle temperature over 230°C, such as ABS, nylon, HIPS, carbon fiber.
PLA, PLA+, PETG do not need this kit, for needed temperature is lower than 220 ℃.
Use of Screws
We provide m3*20 screws, which could be assembled in the same way as stock hotend.
If use these screws, increase fan speed to ensure the temperature of heatsink, avoiding filament melting in heatsink advancely.
Note & Warning
If print above 280℃, take off the silicone sleeve.
Like most of MK8 all metal hotend, its heatsink is 2mm shorter than stock ones.
Material of heat block is aluminum, so maximum temperature is lower than 300 ℃.
Tighten connection of heating block, heatsink and nozzle to avoid filament leakage.
Internal structure of heatsink and break is unique, must be used together.

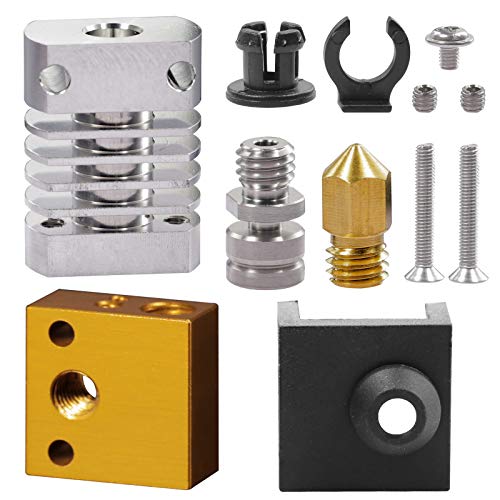

All parts packaged in the form of parts and you need to assemble them for use.

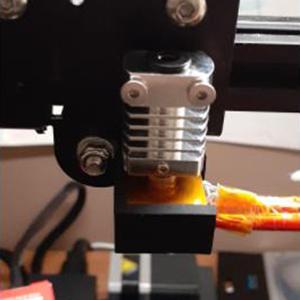

Fits
Creality CR-10 / CR-10S / CR-10 MINI
Creality CR-10 S4 / CR-10 S5
Creality CR-20 / CR-20 Pro
Creality Ender-2 / Ender-3 / Ender-3 Pro / Ender-3 V2
Creality Ender-5 / Ender-5 Pro
TronXY X5S
Tevo Tornado
Lotmaxx SC-10
Alfawise U20
Anet A8

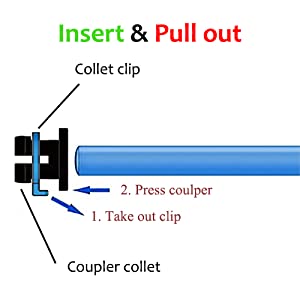

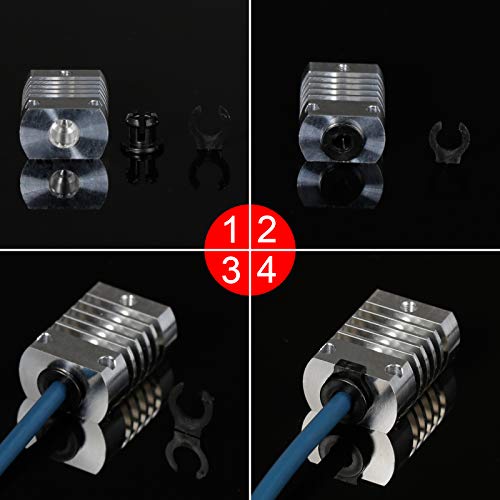

How to Fix Tube
1. Before insert or pull out the bowden tube, please take out the collet clip first.
2. Press the coupler collet and insert or pull out the tube, and keep pressing during this porsession.
3.After the tube is fully inserted and tightly butted with the inner hole of heatsink, fix the tube with collet clip.
Technical Parameter
Heatsink Material
Aluminum

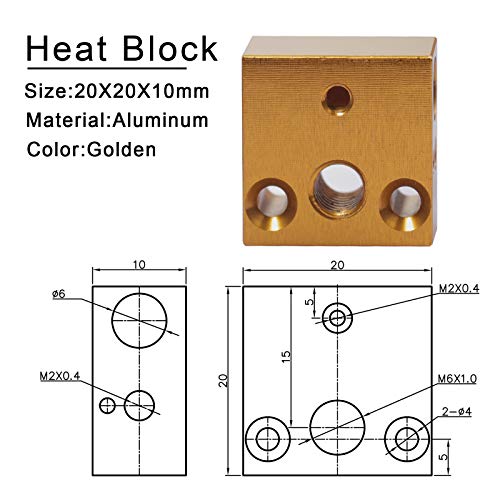

Heated Block Material
Aluminum
Heat Break Material
TC4 Titanium alloy
Nozzle Type
MK8
Nozzle Material
Brass
Nozzle Bore
0.4 mm
Filament Fit
1.75 mm filament
Temperature
230℃ ~ 300℃
Tips
If you are facing clogging problem, please try the followings:
1. Increase the retraction speed.
2. Increase the extruder acceleration.
3. Reduce the retraction length.
4. Increase the nozzle temperature by 5-10 degrees.
5. Do not install the 2 screws for support the heatblcok like the stock hotend on the CR-10 printer.
6. Make sure that there is no gap between the heatsink and the heat breaker.
Product Dimensions:0.79 x 0.79 x 2.05 inches; 0.67 Ounces
Date First Available:July 16, 2020
Manufacturer:Dawnblade
ASIN:B08D3BCGHG
Fast Heat Dissipation – No need of bowden tube, filaments directly pass through the smooth inner wall of aluminum heatsink, which allows for faster heat dissipation.
Efficient Heat-blocking – Heat break is made of Titanium Alloy, providing much better thermal isolation than normal stainless steel printer throat.
High Precision – Due to quality-first production process, the heatsink, heater block and nozzle could offer smooth inner wall and precise connection.
No blockage – Because of the advanced heatsink and heat break, the probability of the filament blocking the hotend is greatly reduced.
Applicable Model – Creality CR-10, CR-10S, CR-10 S4, CR-10 Mini, CR-10 S5, CR-20, CR-20 Pro, Ender-2, Ender-3, Ender-3 Pro, Ender-5, TronXY X5S, Tevo Tornado
