Product Description

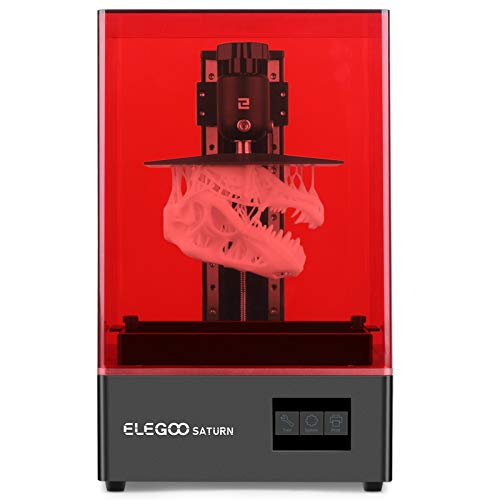

ELEGOO Saturn Resin 3D Printer

11

Supercharged with 8.9 inches 4K HD monochrome LCD

ELEGOO Saturn is our first large-sized resin 3D printer that comes with an 8.9 inches 4K mono display and a big build volume of 192 x 120 x 200 mm. You can now print much larger models at a faster speed or print a lot more models at one time, which facilitates your resin 3D printing experiences dramatically and improve printing efficiency by a great scale.The 4K mono display has an HD resolution of 3840*2400, 508 PPI, meaning the XY axis resolution is 50μm or 0.05mm, which ensures a smooth and delicate 3D printed model surface.4.8%-5.2% light transmittance rate helps with faster printing speed at 2-3s per layer and requires very low energy reducing heat emission, which in return extends the lifespan of the Mono LCD by 300%.High contrast ratio, leaving the dark area with very few light energy and barely any UV light exposure during printing process, enhancing your 3D printed models with complete and outstanding details.

—————————————————

ELEGOO Saturn Resin 3D Printer

11

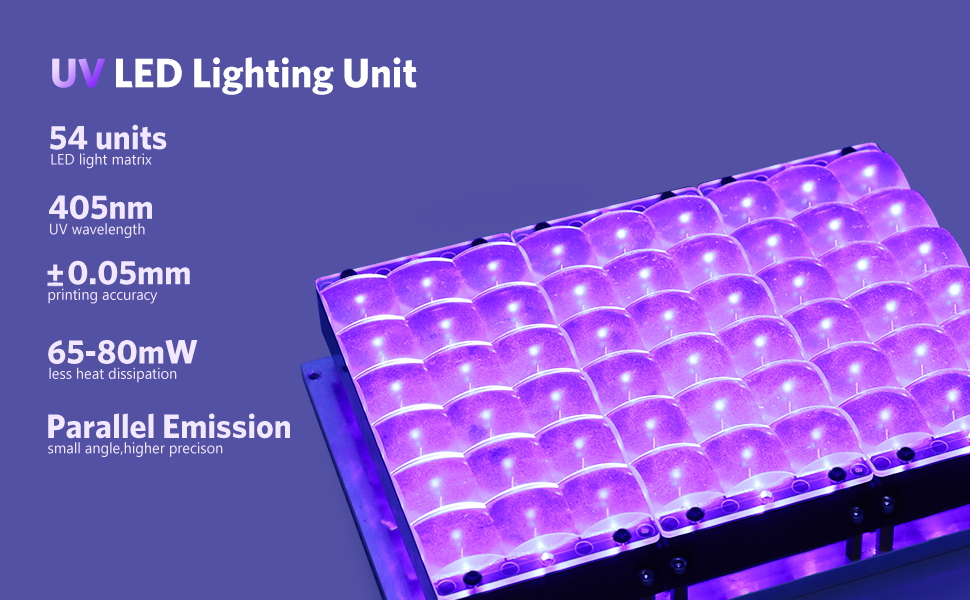

A better way for UV light projection

UV LED matrix is one of the most vital components that constitute Saturn in seek of greater precision and more reliable printing.The 54 LED lights working with the lenses above can generate a more even UV beam of 405nm wavelength, which is perfect for resin 3D printing and tends to have a much smaller emission angle leading to higher printing accuracy at ±0.05mm.Another advantage when projecting lights to the mono display is that it only takes 65-80mW to power up the matrix LED light source, causing very low heat dissipation and saving energy.

—————————————————

ELEGOO Saturn Resin 3D Printer

11

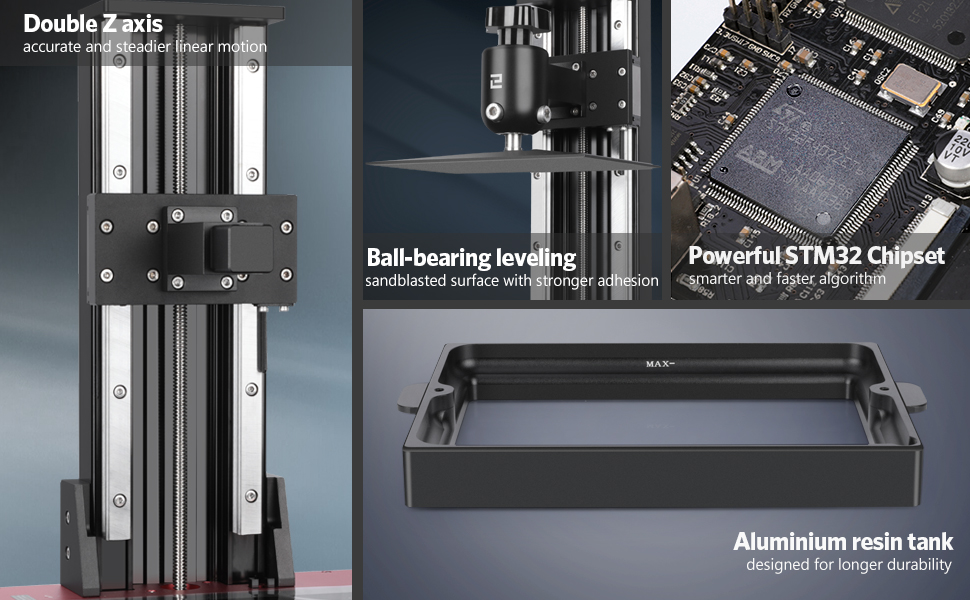

Designed for a more stable and durable performance

Double Z-axis linear railway equipped with a shock absorption unit at the bottom, which provides a quieter, steadier, and more precise motion at ±0.02mm. No wobble, no layer shifting, and drastically reduce layers in the texture.The ball-bearing leveling joint is very easy to handle and generally has a long-lasting leveling performance. The build plate utilized a sandblasted surface to produce a stronger adhesion especially when printing large-sized models.Saturn MSLA 3D printer comes with a metal resin tank made of aluminum alloy. It has two hand grips on both sides for convenient dismounting and four legs to protect the FEP film from scratches.STM32 chip is adapted on the main controlling board, which has powerful computing and algorithm ability.

—————————————————

ELEGOO Saturn Resin 3D Printer

11

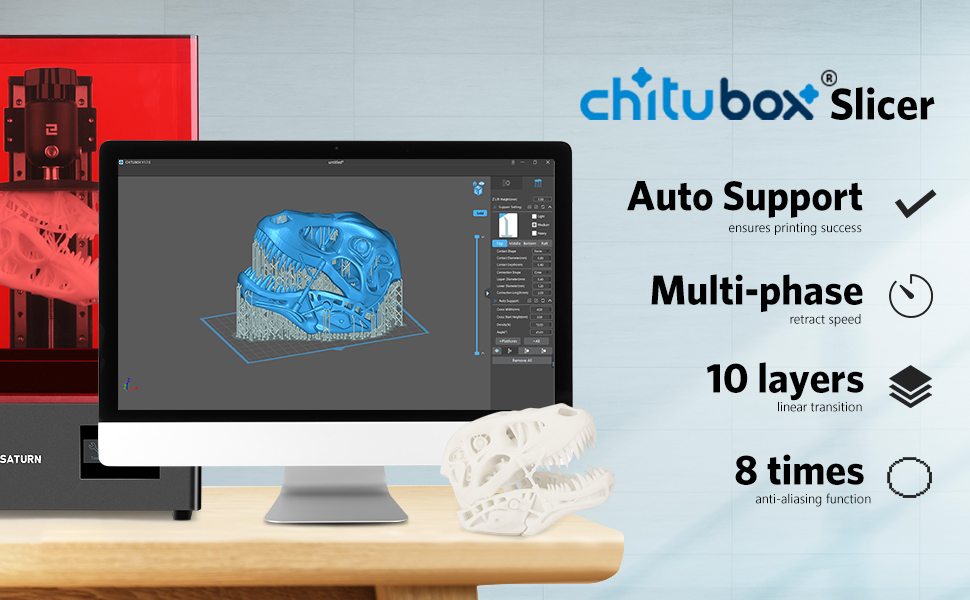

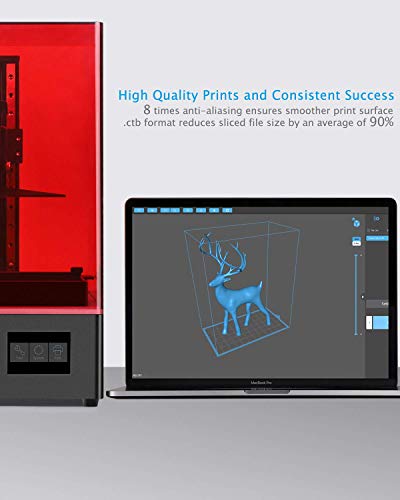

Chitubox Slicer upgraded Smarter

With its user-friendly interface and workflow, Chitubox enables you to slice your models within 4 clicks. Easy peasy.Adding supports is now getting more and more straightforward. One-click for auto supports and also you can add, edit and move supports on your own. The functionalities to fine-tune support settings allow you to calibrate your support shapes, thickness, and density.With a multi-phase retract speed setting, you can now achieve a greatly maximized printing efficiency and scale up your production output.10 layers of linear transition between bottom layers and regular layers make the adhesion much stronger and tighter avoiding printing faults.8-time anti-aliasing works with upgraded image blur function, the printed textures on the 3D model have never been so smooth and flawless.

—————————————————

ELEGOO Saturn Resin 3D Printer

11

Endless possibilities start from resin 3D printing

Resin 3D printing has times and times again proven itself a great solution to high precision modeling and fast prototyping.From design to print, it now only takes a few days, ranter than weeks. You can devote more of your time to other new projects and scale up and speed up your production.For those who are attracted to board games and would love to design and print figurines ,miniatures or sculptures can now enjoy a much higher resolution. Resin printing has its natural advantage compared with FDM 3D printing if you need super-vivid detail performance for your work.

—————————————————

ELEGOO Saturn Resin 3D Printer

11

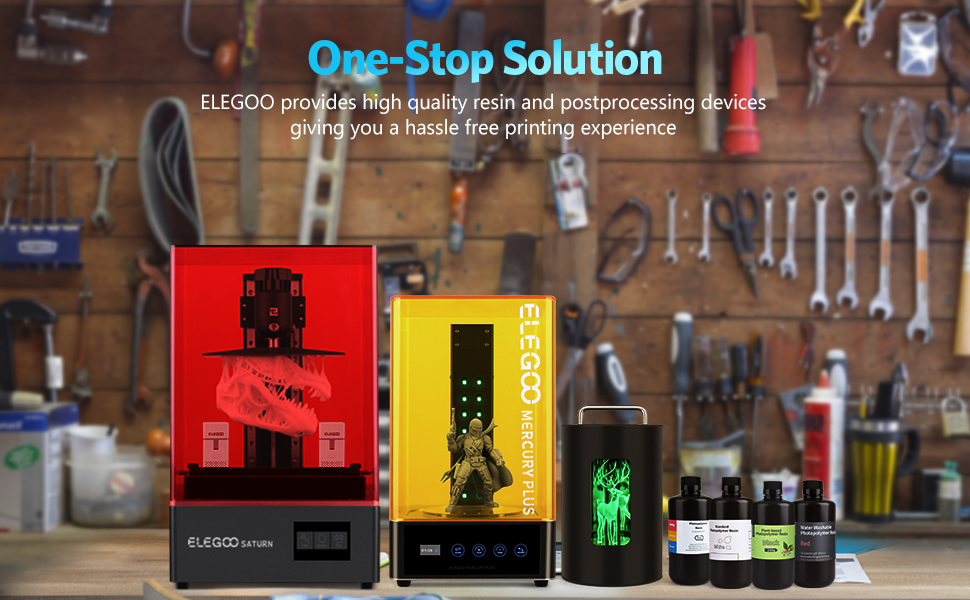

One-Stop Solution to Resin 3D Printing

ELEGOO is one of the leading resin 3D printer brand on the market and has gained loads of supports from our customers across the global.When dealing with resin 3D printing, the essential printing material you cant skip is photo-polymer resin. ELEGOO works hard on the resin research and development to make sure a consistent output when you 3D printing on ELEGOO Saturn 3D printers.Post-processing is needed for resin 3D printing, which would involve model washing and re-curing. ELEGOO Mercury series products are here to help. No more messy cleaning or fussy bathing for your 3D prints, using Mercury Plus to have them washed clean and tight within minutes. Then cure them with the same 405nm wavelength UV light and you will see another piece of art come out.To have a refreshing printing environment, we highly recommend to use ELEGOO Mini Air Purifiers and put them in the cover during 3D printing, which will absorb almost all the pungent fumes and odor from the resin.

———All the products mentioned above could be purchased through below charts———–

More to explore

Is Discontinued By Manufacturer‏:‎No
Package Dimensions‏:‎23.8 x 14.5 x 12.6 inches; 30.25 Pounds
Item model number‏:‎Saturn
Date First Available‏:‎November 1, 2018
Manufacturer‏:‎ELEGOO
ASIN‏:‎B086283SQJ

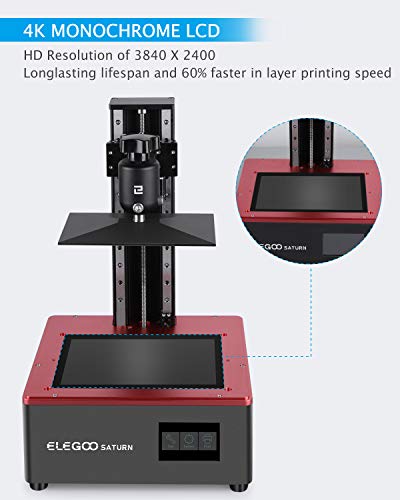

【Faster printing speed】Saturn 3D printer comes with an 8.9inch 4K Monochrome LCD with an HD resolution of 3840 x 2400, reducing the layer printing time to 2s-3s, which is 60% faster than Mars Pro yet still delivers outstanding printing results.

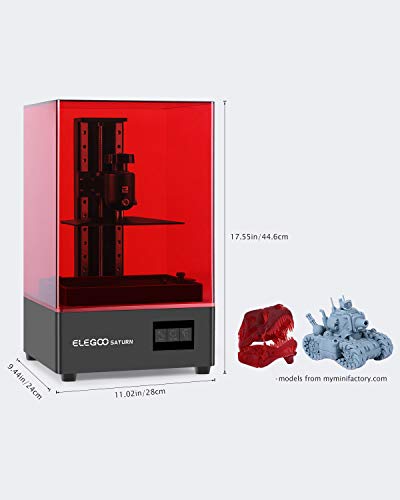

【Larger build volume】Saturn has a large printing volume of 192*120*200mm/7.55in*4.72in*7.87in, and you can print multiple full-sized models at the same time, which can dramatically improve your productivity.

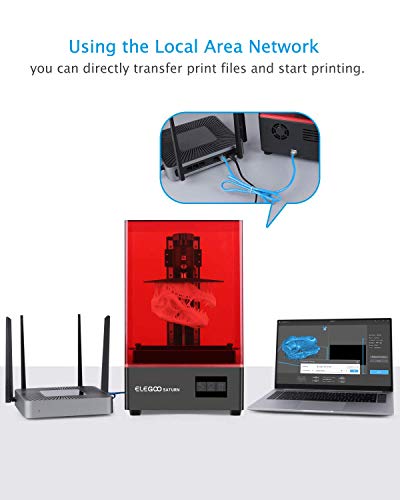

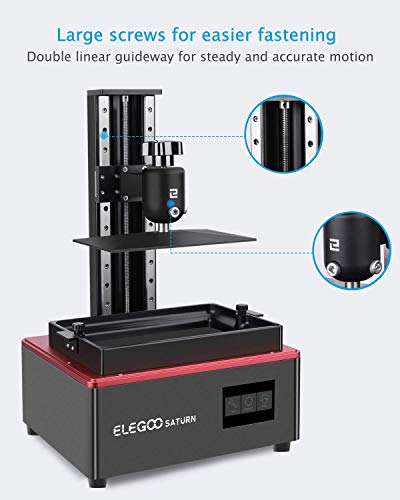

【Higher precision and easier printing】Z-axis utilizes a double linear guide-way structure, which can achieve steadier motion and greatly enhanced moving accuracy. With the Ethernet port on the back, Saturn now supports file transfer through your local area network, which is very handy for fast printing.
【Quality Prints and Consistent Success】Matrix light source consists of 54 UV LED lights with uniform light emission, ensuring superior print results and a more accurate printing size. The set screws on the build plate assure long-lasting leveling, no need for frequent calibration, and the sandblasted surface provides a much stronger adherence, especially when printing large 3D models.
【Warranty and Service】We provide a 1-year warranty on the whole printer (4K LCD, FEP film, and tool kit excluded). Replacement parts will be shipped from the overseas warehouse to offer you quality and fast customer service.
