ELEGOO Saturn MSLA Photocuring 3D Printer with 8.9inch 4K Monochrome LCD Screen and Matrix UV LED Light Source Printing Size 192x120x200mm/7.55×4.72×7.87inch

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]

Product Description

About Brand Vision

Create the future, interpreted as “With the help of programming and 3D printing technology, we can create almost anything—Elegoo provides geeks with the key to a new world.”

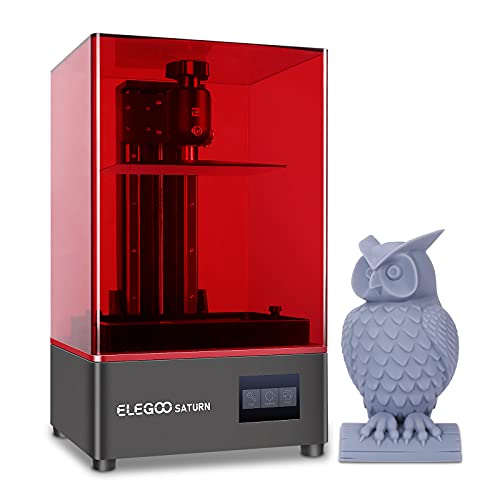

ELEGOO Saturn 3D Printer

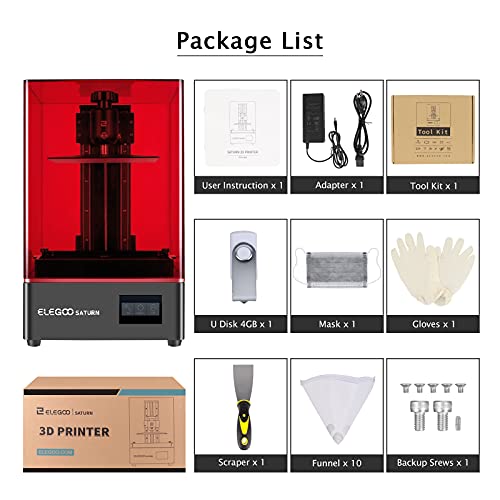

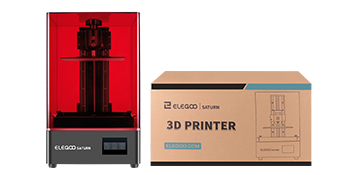

Package List

U Disk 4GB x 1Mask x 1Gloves x 1Scraper x 1Funnel x 10Tool Kit x 1Backup Srews x 1Adapter x 1

User Instruction x 1

Build Platform x 1

Resin Tank x 1

ELEGOO Saturn 3D Printer

Basic Parameters

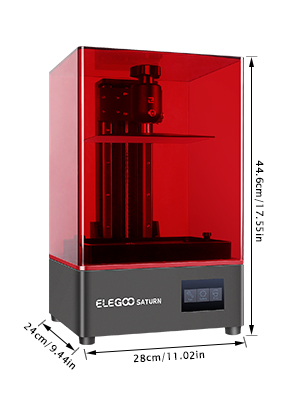

XY Resolution: 0.05mm [4K 3840*2400] Z Axis Accuracy: 0.00125mm Layer Thickness: 0.01-0.15mm Printing Speed: 30-40mm/h Power Requirements: 100-240V ; 50/60HzDimensions: 28cm(L)*24cm(W)*44.6cm(H) ; 11.02in(L)*9.44in(W)*17.55in(H)Build Volume: 192mm(L)*120mm(W)*200mm(H) ; 7.55in(L)*4.72(W)*7.87in(H)Weight: 10kg(22Lbs)

System: EL3D-3.0.1

Technology: LED Display Photocuring

Light source: UV Integrated Light(wavelength 405nm)

Slicer Software: CHITUBOX

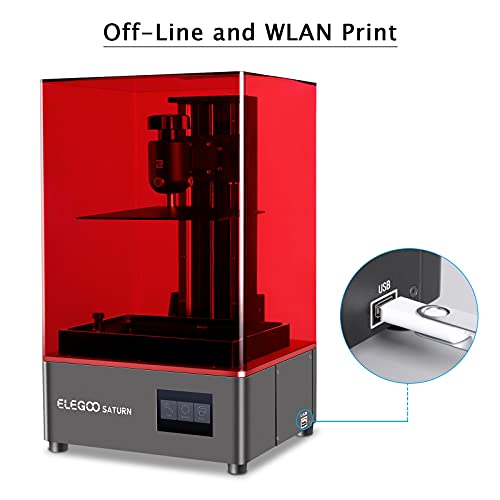

Connectivity: USB

Operation: 3.5 Inch Touch Screen

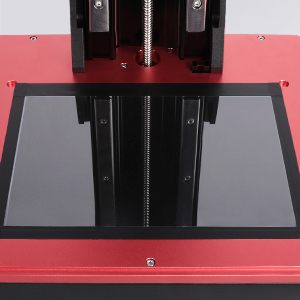

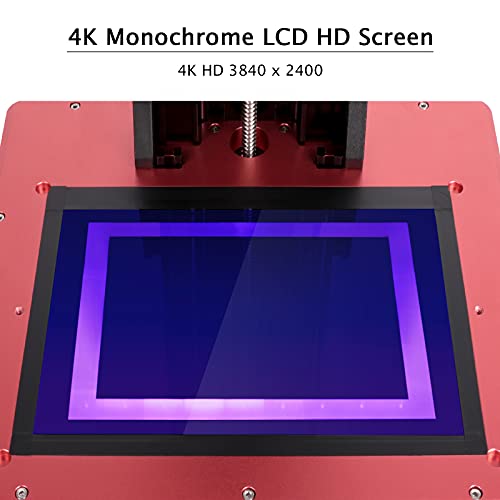

4K Monochrome LCD

ELEGOO Saturn uses 4K HD 3840 x 2400 resolution monochrome LCD. The service life of the screen can reach 200​​0h. Monochrome LCD has stable performance during long-term printing.

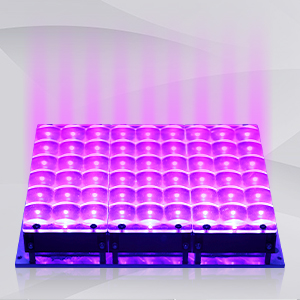

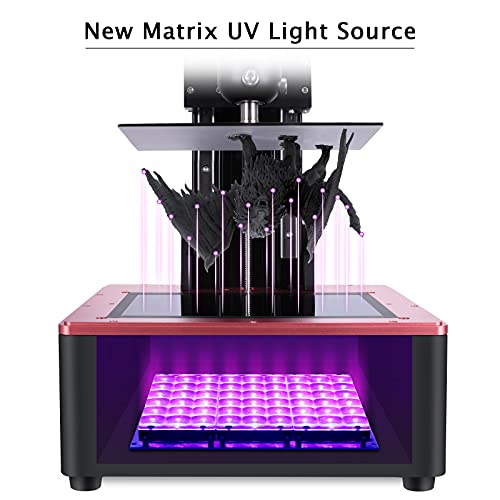

New Matrix UV Light Source

New generation of new matrix design consists of 54 UV LED lights, which provides more uniform UV light emission and working together with 4K mono LCD. Layer exposure time is also reduced to 2.5 seconds. Greatly improved pringting details and precision.

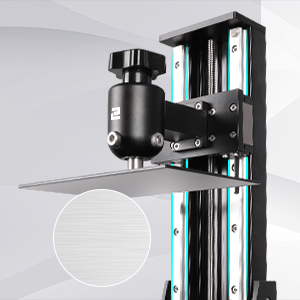

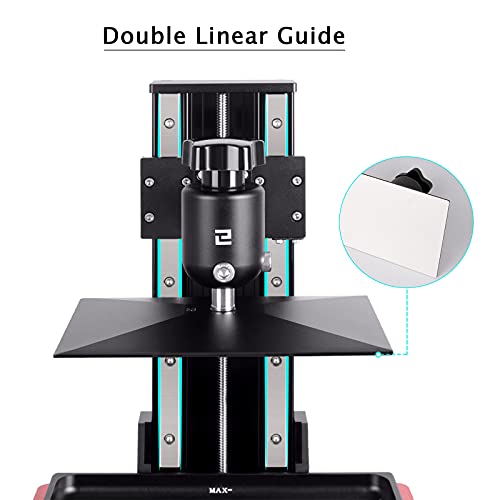

Double Linear Guide

Z-axis adopts double liner guide structure with an accuracy of 0.01mm, which improve the stability of Z-axis, greatly enhance moving accuracy and eliminate layer patterns, make the surface much smoother.

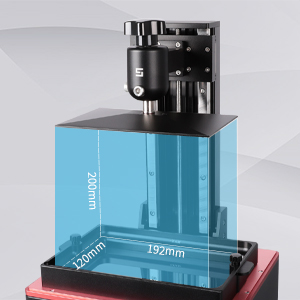

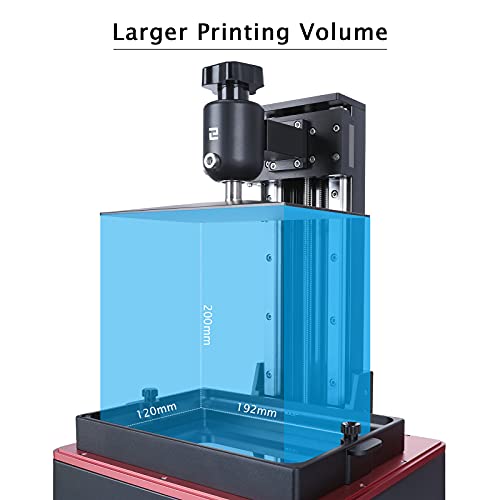

Larger Build Volume

It has a large printing volume of 192*120*200mm. The sandblasted surface provides stronger adhesion and ensures consistent printing success.

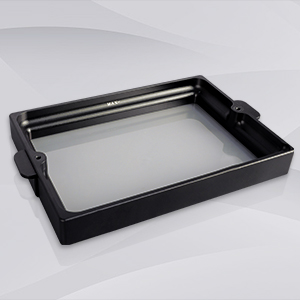

Upgrated Resin Tank

Saturn comes with a new design metal resin tank. There are two handles on both sides for easy disassembly.

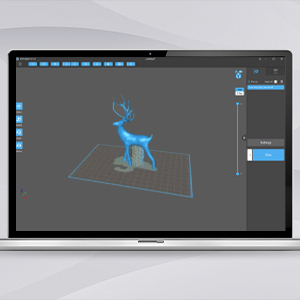

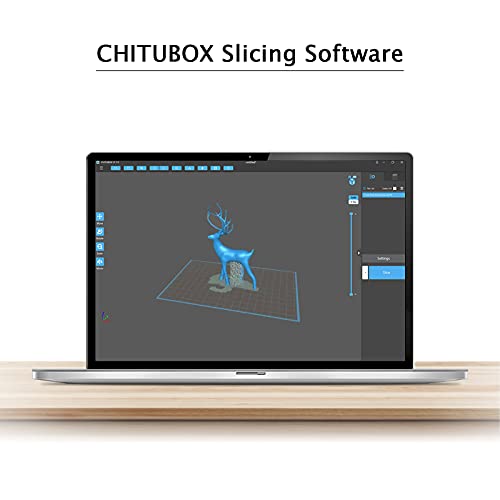

CHITUBOX Slicing Software

ELEGOO Saturn comes with the latest version of CHITUBOX slicing software. It only takes 1 minute to slice 30Mb .stl format file.

Precautions

Please do not remove the black protective tape around the edges of the screen.Before printing, please peel off the transparent protective film on the screen.

Notice

Please Keep the Saturn 3D Printer and its accessories out of the rach of children.When you use the printer for the first time, you would need to adjust it before printing(Unbox and Test).If the Printing failed, you would have to clean the resin tank and change resin otherwise it may cause damage to your printer.Please only fill 1/3 of the resin tank only and don’t fill it up.Please use 95%°(or higher) ehtyl alcohol or isopropyl alcohol to wash your model unless you are using water washable resin.Please use the printer indoors and avoid direct sunlight and dusty environment.Please keep your printer away from water or damp environment.Please wear a mask and gloves before using and avoid direct skin contact.If you want to print models with sharp edges please be careful when removing it from the build platform.Please don’t disassemble the Saturn 3D Printer by yourself.If you run into emergency issues please shut down the power of the printer first.

Package Dimensions‏:‎23.8 x 14.8 x 12.7 inches; 30.3 Pounds
Date First Available‏:‎June 22, 2021
Manufacturer‏:‎ELEGOO
ASIN‏:‎B097PJJQTT

“Add both to Cart” enter C8OLF393 to Get 1000g resin free. 【Fast Printing】 ELEGOO Saturn 3D printer is equipped with an 8.9-inch monochrome LCD with a resolution of 4K HD 3840 x 2400. The maximum printing speed is 30-40mm/h, which can improve your printing speed and efficiency.
【Longer Lifespan & Larger build volume】 The 4K monochrome LCD has a longer service life and stable performance during long-term printing. The service life can reach 2000h. Its large build of 192*120*200mm can maximize your creative potential.
【Better Printing Quality】 Mono LCD 3D printer adopts Matrix 54 UV LED light source, which provides more uniform light emission, the single layer exposure is also reduced to 2.5 seconds. It means better printing results.
【 High Resolution】 Saturn is designed with double Z-axis liner guideway structure with an accuracy of 0.001mm, which effectively eliminating layer lines and provides better stability. The sandblasted platform greatly enhance the adhesion during printing process.
【After Sale Service】 We provide 1 year warranty on the whole printer and 6 month warranty for the 4K LCD (Excluding FEP film). If you have any questions, please feel free contact us, we will reply you within 24 hours.
