Product Description

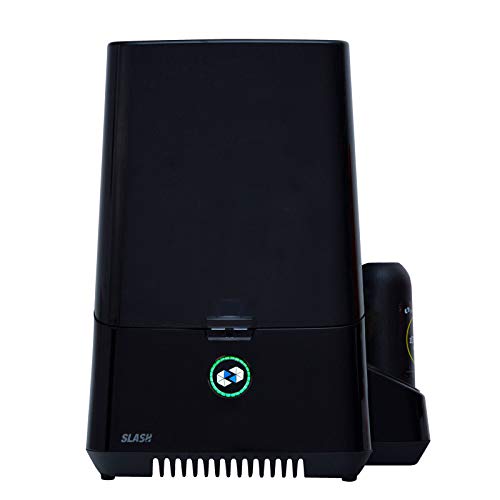

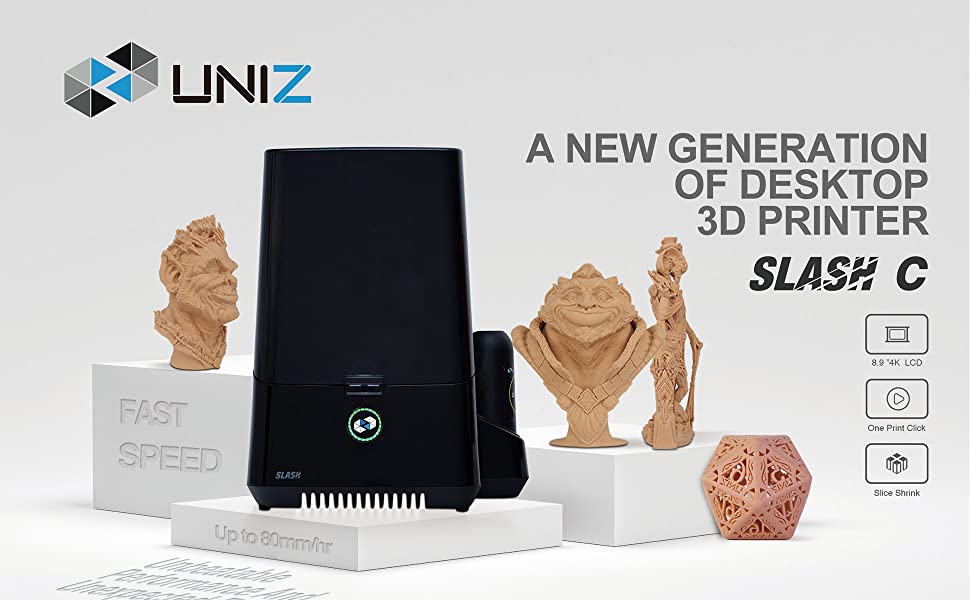

UNIZ Slash-C LCD 3D Printer High Speed 3D Resin Printer with 8.9″ 4K Monochrome Large Build Volume
5 Anniversary Limited Edition
For celebrating 5th anniversary, UNIZ release a special limited edition 3D printer–Slash C, which uses an 8.9″ 4K monochrome LCD screen specially designed for light transmittance and highresolution. The Slash-C provides a substantially larger build volume than other printers in its class, which can be fully utilized by its ability to print many objects at once and thereby greatly increasing its throughput. With unrivale defficiency and speed, and uncompromising quality, the Slash-C is perfect for its applications in , toys, engineering, jewelry and custom manufacturing
Core Technology: Make Anytime, Anywhere

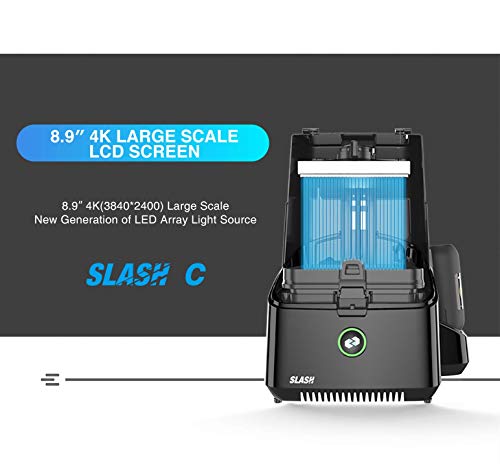

4K HD Dedicated Screen
Uniz invested the first 8.9” 4K monochrome LCD screen dedicated for commercial 3D printers.
Monochrome LCD screen can increase 50% light transmittance and 30% power than normal LCD screen.
Lifespan of monochrome LCD screen is 10X longer than normal LCD screen.
LCD Parallel Light Source
Uniz invested first parallel LCD light system
First patent honeycomb style UV light system
126-piece high power LED lamps

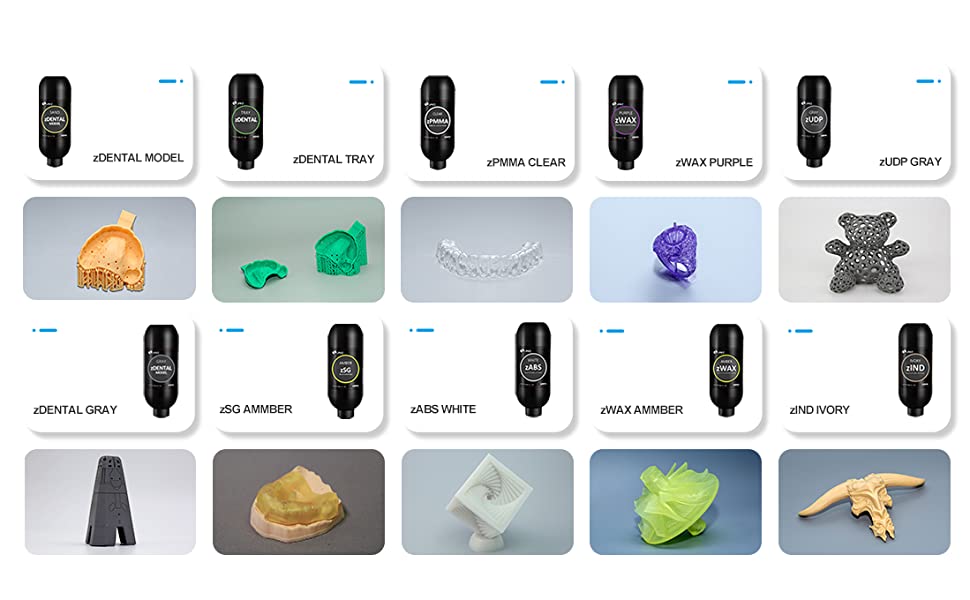

Compatible with 3rd Party Resins
Many 3D printers available today only officially support their own company-produced resins. This is inconvenient and can put expensive limitations on consumers. Uniz is different. It works with the most available resins, such as standard resins, dental resins, flexible resins, engineering resins, and more.
Printing material
From toys to dentistry, jewelry design, and prototyping, Slash-C’s 8.9”LCD, 80mm/h speed can handle your larger projects with speed and ease.

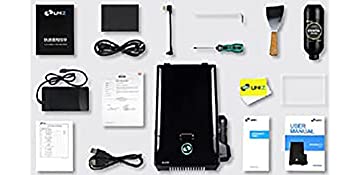

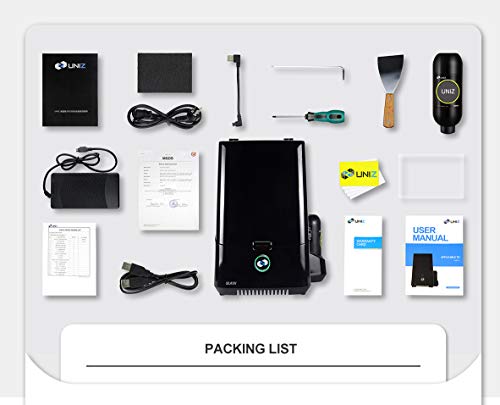

Packing List
3D Printer LCD screen film Power adapter&USB cable Filtering foam Scraping cards Sandpaper Scraper Hand tools set Resin&MSDS of Resin Quick guide&User manual
UNIZ Slash-C 4K LCD 3D Printer, LCD UV-Curing Resin 3D Printer
Technical Specifications :
Printing Speed：Up to 80 mm/hr (Natural peel mode)
Xy Resolution：49.8μm 3840*2400（4K)
Highest Accuracy*：±10μm
Layer Thickness：10, 25, 50, 100, 150, 200, 300μm Profile customizable
Material: UV-Curing Photosensitive resin 405nm
Support: UNIZ smart support technology
Separation Mechanism：Polymer film natural peel up to 100x more durable than PDMS
Software Input Formats: STL, OBJ, AMF, 3MF, UNIZ
Connectivity:USB, Wifi, Ethernet

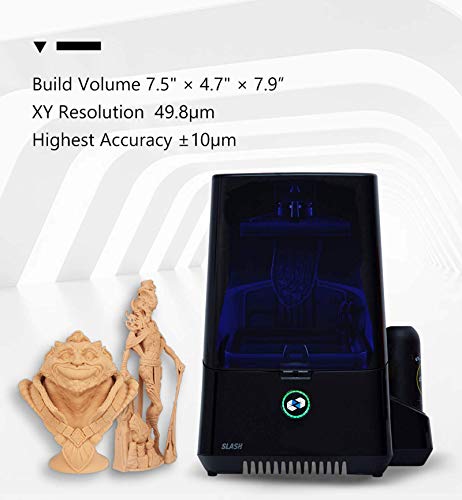

Build Volume: 7.5″×4.7″× 7.9″ (192mm× 120mm ×200mm)
Dimension：350 × 400 × 530 mm [W×D×H]
Weight: 30.8LB

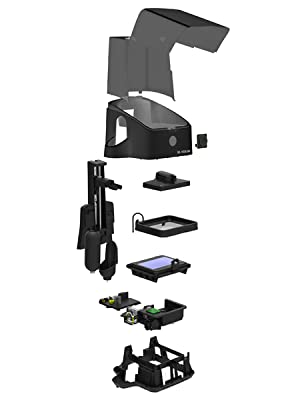

Mechanical:Cast Aluminum & CNC, Injection Molding
Power Requirement：100-240VAC, 6A 50/60Hz
A new printing experience
The thickness of the layer can be adjusted arbitrarily to achieve faster printing speedUsers can automatically set the model in the best printing position at one click of a buttonGenerate supports where you need it with one click Rotate, scale, duplicate, and mirror the model into any position that best fits your need and offers the perfect printOur proprietary software comes with a built-in file repair function, and slicing function.The UNIZ software comes with an online model library and store where you can upload your models and download models posted by other UNIZ usersAutomatically generate print reports that can tell you print time, the amount of material used, and much more.

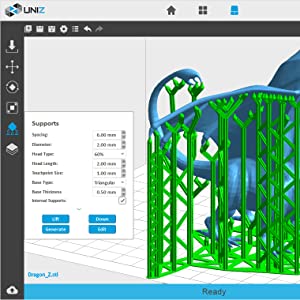

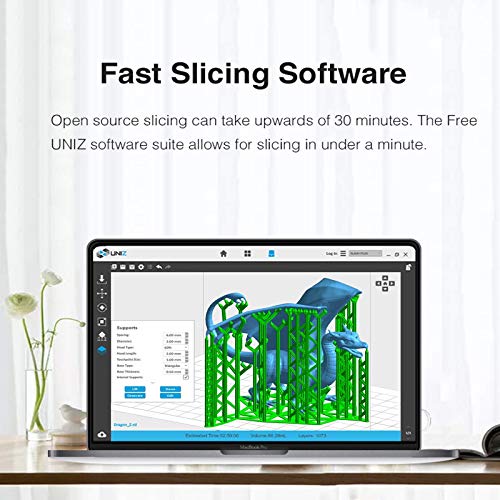

Slicing Software
System Requirement:
Windows 7 and up (64-bit only), Mac OS X 10.7 and up (64-bit only), 16GB RAM, OpenGL 2.1, Discrete Graphics
Advanced Features:
Multi-printer management Built-in advanced model repair Ultralarge filesupport (1GB+)
Compatible Format:
STL, OBJ, AMF, 3MF, SLC, UNIZ
Connectivity:
USB, Wifi, Ethernet （Please refer to the user manual for connection instructions）
Printing Technology
LCD Stereolithography
LCD Stereolithography
LCD Stereolithography
LCD Stereolithography
Build Volume
192×120×200mm 7.5″ × 4.7″ × 7.9″
192×120×200mm 7.5″ × 4.7″ × 7.9″
192×120×200mm 7.5″ × 4.7″ × 7.9″
192×120×400mm 7.5″ × 4.7″ × 15.8″
XY Resolution
49.8μm
75μm
49.8μm
75µm
LCD Resolution
4K
2K
4K
2K
Maximum Accuracy
±10μm
±20μm
±10μm
±20µm
Printing Speed
Up to 80 mm/hr
Up to 200 mm/hr
Up to 200 mm/hr
Up to 200 mm/hr
Automatic Level control & Liquid cooling system
✓
✓
✓
Camera
✓
✓
✓
Mobile Apps
iPhone, iPad, Android Phone and Tablet
iPhone, iPad, Android Phone and Tablet
iPhone, iPad, Android Phone and Tablet
Connectivity
USB, Wifi, Ethernet
USB, Wifi, Ethernet
USB, Wifi, Ethernet
USB, Wifi, Ethernet
Product Dimensions:21.6 x 27.5 x 21.6 inches; 30.8 Pounds
Date First Available:September 10, 2020
Manufacturer:UNIZ
ASIN:B08HN6R777
【Larger Size】Professional large buidsize – Build Volume: 7.55″ x 4.72″ x 7.87″ (192mm x 120mm x 200mm), to meet the creative needs of larger and quantity models. It also enables you to print jewelry, toys, large figures, and models in one piece.Note:This product DOES NOT have a resin pump or level sensor
【Higher Precision】UNIZ uses 8.9″ 4K LCD monochrome screen, which provide accurate printing with 3840*2400 pixels and XY axis resolution of 49.8um, the highest accuracy can reach ±10μm. Patent honeycomb-style UV Light System, the Matrix light source is more uniform, Monochrome LCD screen can increase 50% light transmittance and 30% power than normal LCD screen and also Lifespan is 10x longer

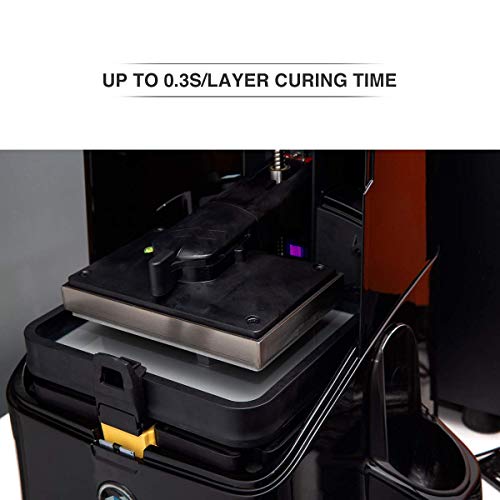

【Faster Speed】parallel light source with a combination of 126pcs 150-watt UV LED light sources, The max printing speed is 80mm/hr; Up to 0.3s/layer curing time. the printer can be connected with USB, Wifi, Ethemet; With a smart buttom displaying different colour for each process, can also show printing progress bar
【Intelligent slicing software】❖Automatic model repair ❖Vector slice ❖Open to third party resins ❖Support SLC format file ❖Add support automatically with one click❖print with one click ❖Layer Thickness customizable 10~300μm.❖Polymer film natural peel up to 100x more durable than PDMS
【Warranty & Support】Lifespan of monochrome LCD screen is 10 times longer than normal LCD screen; Free One-year warranty is guaranteed, If you have queries or want to know more product, feel free to contact us! UNIZ Support team provides you lifetime technical assistance and 24 hours professional customer one-on-one service
