Price: $59.99
(as of Oct 05,2024 15:35:33 UTC – Details)


Product Description

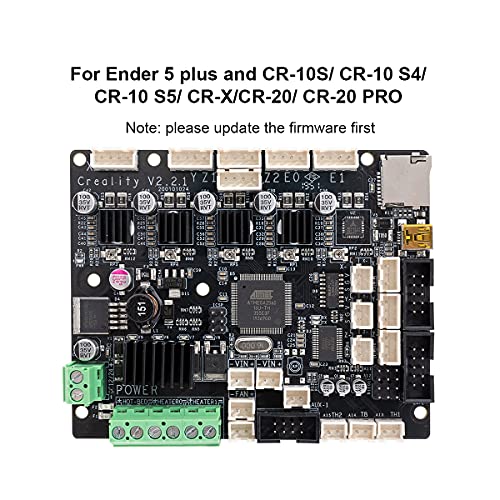

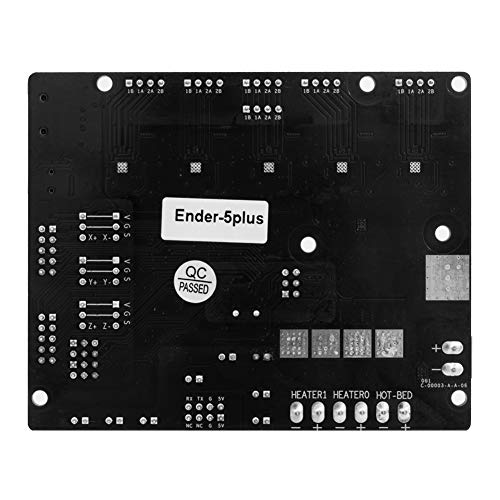

Ender 5 plus silent mainboard, mute motherboardEnder 5 plus silent mainboard, mute motherboard

IMPORTANT NOTES:

For ender 5 plus 3D printer, you just plug in and start printing.For CR-10S/ CR-10 S4/ CR-10 S5/ CR-X/CR-20/ CR-20 PRO printer, please update the corressponding firmware. DO NOT TRY RANDOMLY. If you have any other issues with the firmware update, you can refer to firmware flash videos available on Creality official website.If it starts beeping and does not show anything on the screen when you turn it on, you have to update the firmware and check your wiring at first.Upgraded silent mainboard for ender 5 plus printer, V2.2 or V2.2.1 shipped randomly (With same function, just the version number is different) . If you received V2.2 board in black color, do not worry about it. The item you received is the one you ordered from us ( The standard not-silent board is V2.2 but the color is green).

mainboard specification

mainboard specification

mainboard specification 2

mainboard specification 2

mainboard specification 3

mainboard specification 3

Specifications

Version: V2.2 or V2.2.1Voltage: 24V Input/12V OutputFirmware: Based on Marlin 2.0.1Motor Driver Stepper: TMC2225Bootloader installed (ISP/USB Arduino)TMC2225 drivers, Marlin 2.0.1 and bootloader have been pre-installed.Support 24V input voltage with USB Port, can be Worked With E/Z/Y/X Axis Motor.Conventional – R100 mute: R150

Install

Creality 8 bit V2.2 Silent Mainboard supports BL touch automatic leveling and filament break detection, we can choose a silent motherboard for Ender series printer. These models are all DIY models, easy to install.

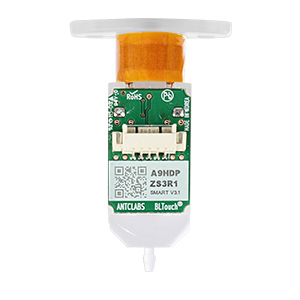

No more need to flash firmware for BL Touch

If you want to upgrade your standard board to a silent one, ne need to flash firmware for BL Touch. You just plug and play.

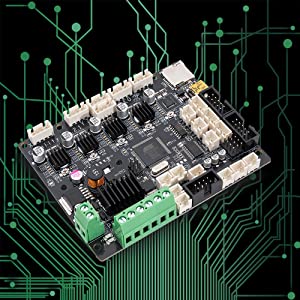

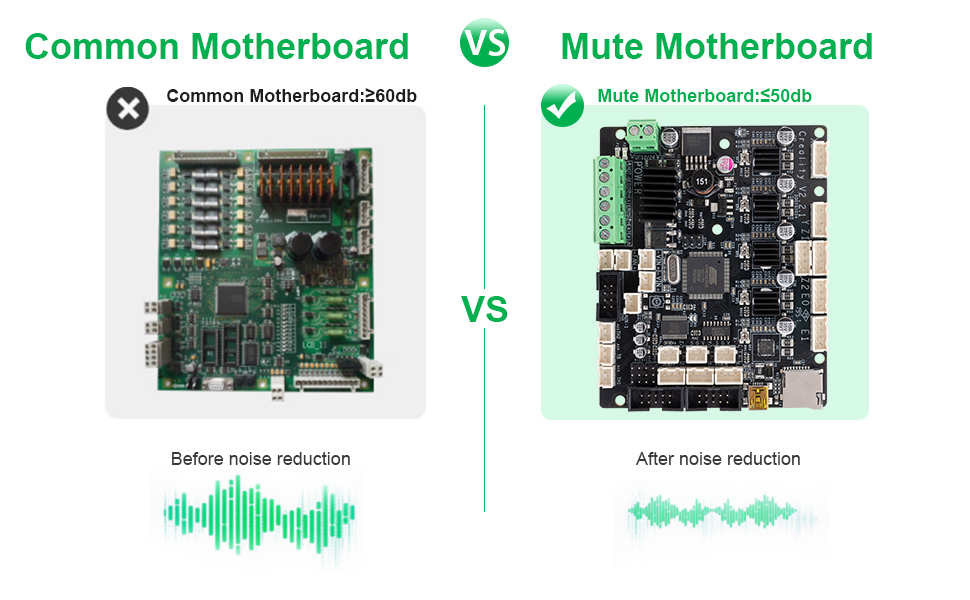

MotherboardMotherboard

Super Silent Driver

Creality Ender 5 plus mainboard Use TMC2208 Stepper Motor Drivers, with stronger anti-interference, faster and more stable motion performance, silent printing and low decibel operation. After using silent mainboard, the machine is always running at low decibels (<50dB). you could safely and boldly perform 3D printing operations without apologizing, and you never need to worry about noise disturbing others. V2.2 silent motherboard printing smoother and the running speed is obviously accelerated.Thermal runaway protection is enabled. If the temperature rises out of control, the printer will stop heating automatically.The design of the Ender 5 plus silent motherboard extends the application of 3D printers, starting from ordinary manufacturing to indoor places such as homes, offices, research institutes, and especially some relatively quiet public areas.

Package Dimensions‏:‎7.24 x 6.02 x 2.17 inches; 4.97 Ounces
Date First Available‏:‎August 25, 2020
Manufacturer‏:‎Creality 3D
ASIN‏:‎B08GLGX3Y4

【Upgraded Mainboard】Quiet and more powerful of Creality Mute Board ,V2.2 is same like V2.2.1,same function, same version,but different name. Work with Creality Ender 5 plus/CR-10S/CR-10S4/CR-10S5/CR-X/CR-20/CR-20 PRO.
【Super Quiet Driver】Ender 5 plus board Use TMC2208 Stepper Motor Drivers, which is the key component to eliminate the printer’s motor when printing. Super Quiet and Noise Reduction.
【Thermal Runaway Protection】Thermal runaway protection is enabled. If the temperature rises out of control, the printer will stop heating automatically
【Notice】This new upgraded silent mainboard does not currently come pre-installed on ender 5 plus
【Bootloader pre-installed】Our silent board equipped with Bootloader, so the firmware can be modified by Cura with the USB cable.
