Product Description
Brand Manufacturing:
For freedom to make through 3D printing technology
ANYCUBIC has gathered a professional 3D R&D team
Committed to creating a high-quality desktop 3D printer
Was rated as the “Most Popular 3D Printer Brand”
3D technology brings more possibilities to life

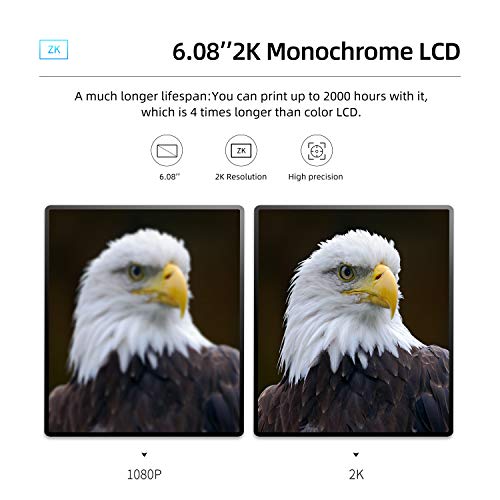

6.08” Monochrome LCD
Remote Control
Parallel Light Source
Metal Frame
High Quality Power Supply
High Performance Z-axis

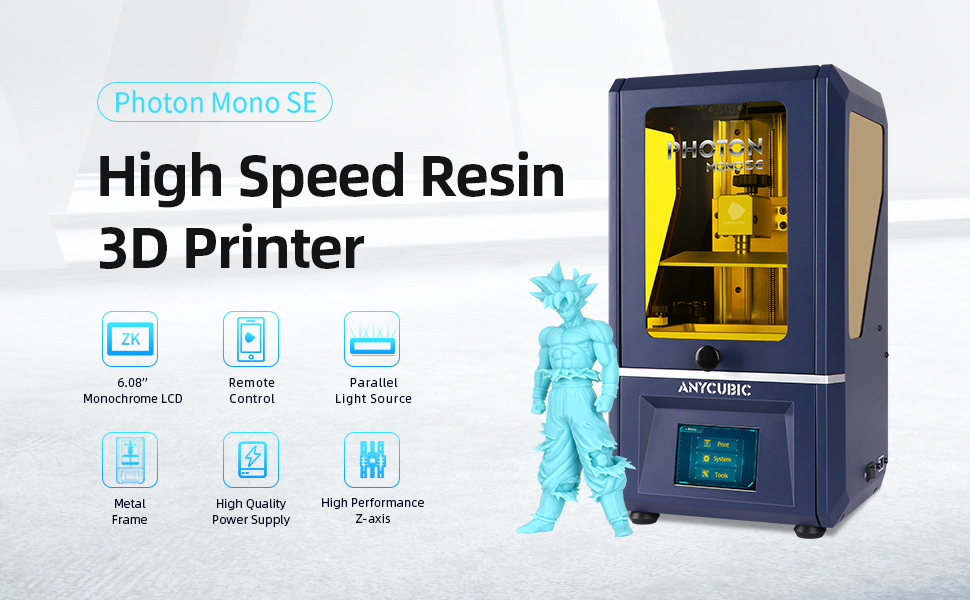

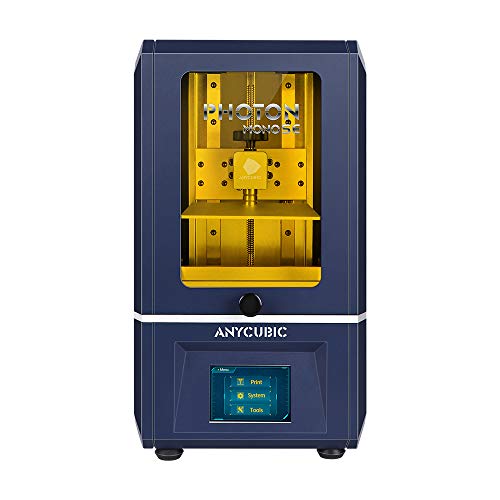

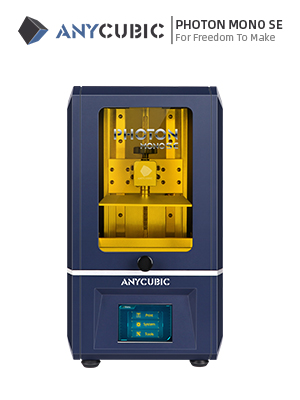

ANYCUBIC Photon Mono SE LCD Resin Printer
Technical Specifications
Operation : 3.5 inch Touch Screen
Software : ANYCUBIC Photon workshop
Connectivity : USB
Technology: LCD-based SLA
Light-source: high-quality filament（wavelength 405nm）
XY Res.: 0.051mm 2560*1620（2K）
Z Axis Res.: 0.01mm
Layer Res.: 0.01 ~ 0.15mm
Printing Speed: MAX 80mm/h
Rated Power: 55W

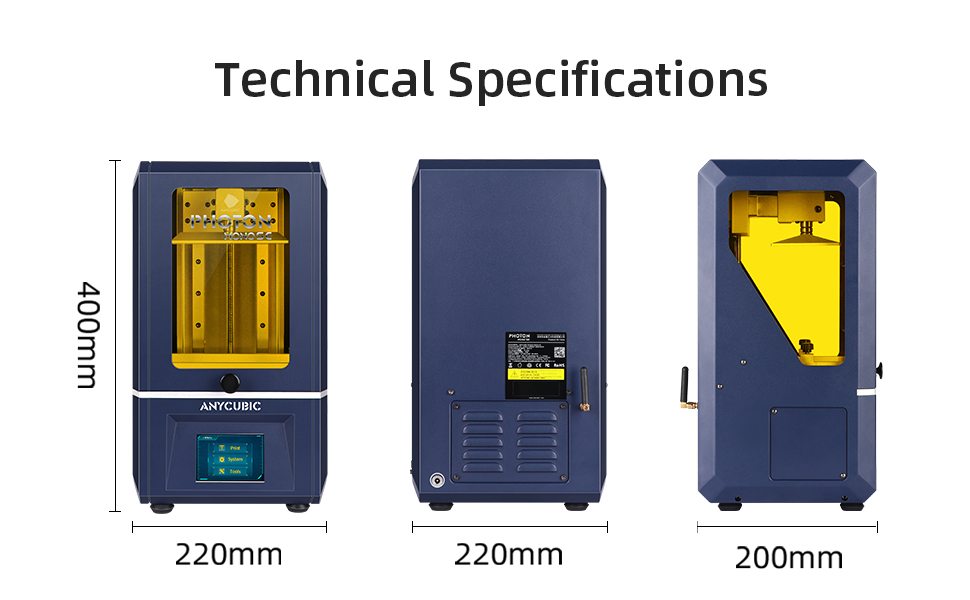

Physical Dimensions
Printer Size: 220mm(L)*200mm(W)*400mm(H)
Build Volume: 130mm(L）*78mm(W）*160mm（H）
Material: 405nm UV Resin
Net Weight: ~8.2 kg
Gross Weight: ~9.7kg

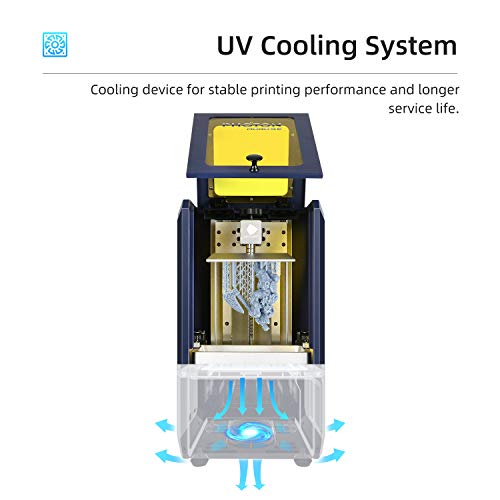

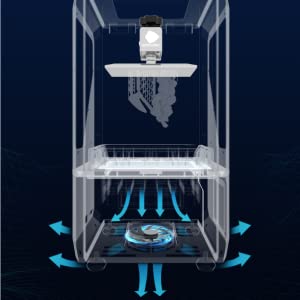

UV Cooling System
Cooling device for stable printing performance and longer service life.

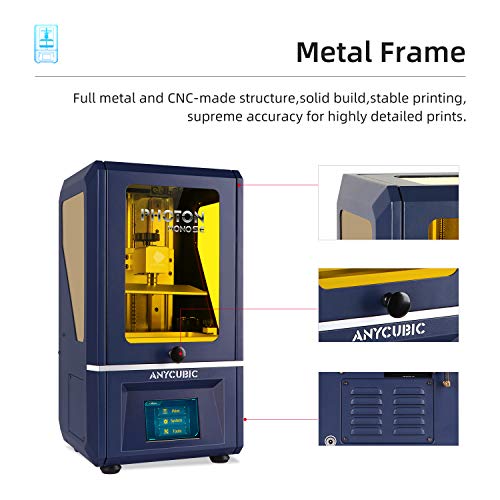

Full metal and CNC-made structure, solid build, stable printing,
supreme accuracy for highly detailed prints.

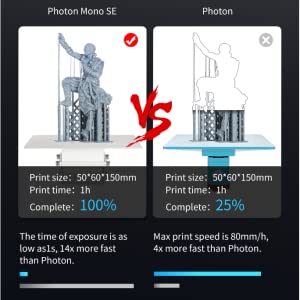

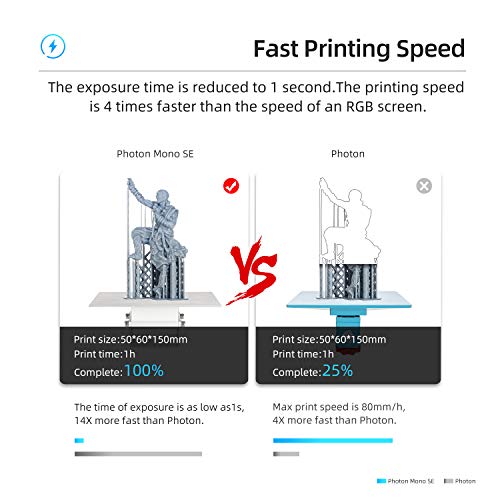

Fast Printing Speed
The exposure time is reduced to 1 second. The printing speed is 4 times faster than the speed of an RGB screen.

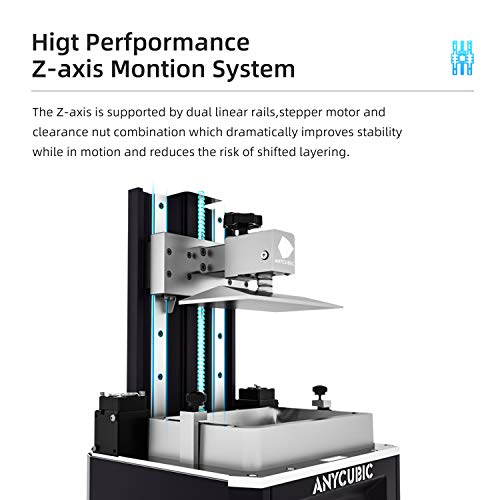

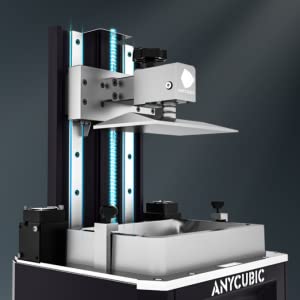

High Performance Z-axis Motion System
The Z-axis is supported by dual linear rails，stepper motor and clearance nut combination which dramatically improves stability while in motion and reduces the risk of shifted layering.

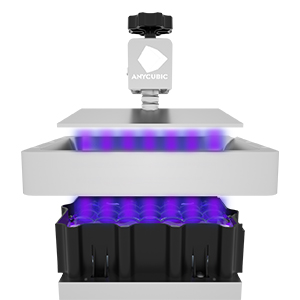

New Matrix Parallel Light Source
It has a more uniform exposure, higher efficiency and better heat dissipation.
The light is more uniform, the detail printing is better.

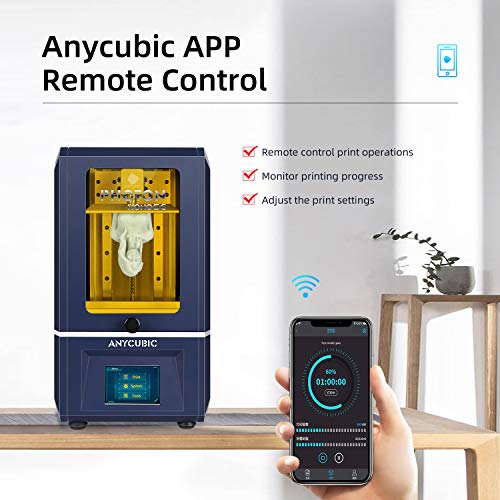

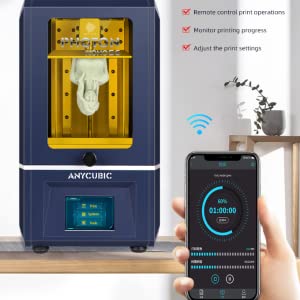

Anycubic APP Remote Control
Remote control print operations
Monitor printing progress
Adjust the print settings
Upgraded Design For a Better User Experience

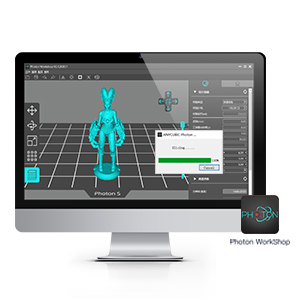

Anycubic Slicing Software
More powerful functions, up to 16 times anti-aliasing, practical functions continue to be updated
-Quick slice -Model hollowed out
-Model cutting -Model lettering
LCD Type
6.08 inch Mono LCD
5.5 inch RGB LCD
2.8 inch Touch Screen
6.08 inch Mono LCD
8.9 inch Mono LCD
XY Resolution
2560×1620 (2k)
2560×1440
854×480 (480P)
2560×1620 (2K)
3840×2400 (4K)
Build Size
5.11″x 3.07″x 6.3″ 130x78x160mm
4.53″x 2.56″x 6.49″ 115x65x165mm
3.81″x2.12″x5.9″ 97x54x150mm
5.11″x3.14″x6.5″ 130x80x165mm
7.55″x4.7″x9.6″ 192x120x245mm
Printing Speed
80mm/h
20mm/h
20mm/h
50mm/h
60mm/h
Z Axis Accuracy
0.01mm
0.00125mm
0.01mm
0.01mm
0.01mm
Z Axis Accuracy
0.01mm
0.00125mm
0.01mm
0.01mm
0.01mm
Layer thicknessZ Axis Accuracy
0.01-0.15mm
0.01-0.2mm
0.01-0.2mm
0.01-0.15mm
0.01-0.15mm
Materials
405nm UV-Resin
405nm UV-Resin
405nm UV-Resin
405nm UV-Resin
405nm UV-Resin
Package Dimensions:21.81 x 11.89 x 11.73 inches; 23.13 Pounds
Date First Available:January 13, 2021
Manufacturer:ANYCUBIC
ASIN:B08KZQQM45
4X Fast Printing, Saving Time — ANYCUBIC Photon Mono SE achieves fast printing, each layer of exposure can cure the resin in only 1 second, and the printing speed is MAX 80mm/h, which is 4X that of ordinary color screens, which greatly improves the printing efficiency and saves time printing More models. The 6.08-inch 2K monochrome LCD has a longer service life and can print for more than 2000 hours.
High Printing Accuracy, High Stability — Photon monose adopts 2k 6.08 inch black and white screen, 2560 * 1620 (2K) high resolution brings high precision printing, high light transmittance, and Z axis adopts double linear guide + screw motor +The combination of anti-backlash nut to improve the stability of the Z axis, so that the printing details can be vividly displayed, suitable for printing microcosms, with surprising fineness.

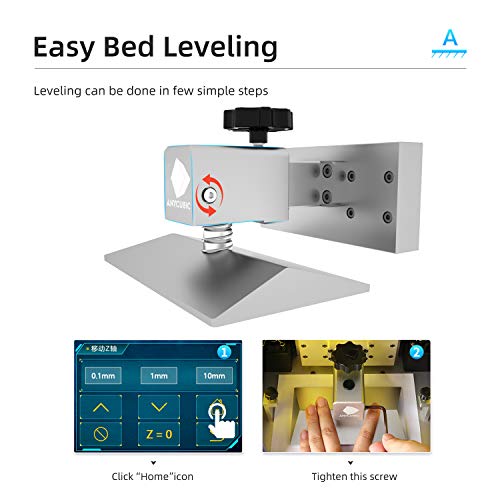

WIFI Control, One-key Leveling — Download and use the Anycubic 3D application control to easily realize remote control of printing operations, real-time monitoring of printing progress, and adjustment of printing parameters at any time. The Anycubic Mono Se 3D printer is a pre-assembled printer, which can be assembled quickly and leveled easily. Just reset to zero → lock the platform, and leveling can be completed in two simple steps.
Metal Frame, Sturdy and Durable — The all-metal one-piece housing and CNC machined aluminum body enable Photon Mono Se to reduce resonance, make printing more stable and improve printing accuracy. The printing platform is designed with a drawing process, which can enhance the adhesion, make it more stable during the printing process and eliminate the print layer pattern.
Powerful Heat Dissipation System — Anycubic Photon monose has a unique ultraviolet heat dissipation channel, effective cooling, helping to improve printing quality and service life. The print size is 130 x 78 x 160mm, which fits the size of various print models.
