Product Description

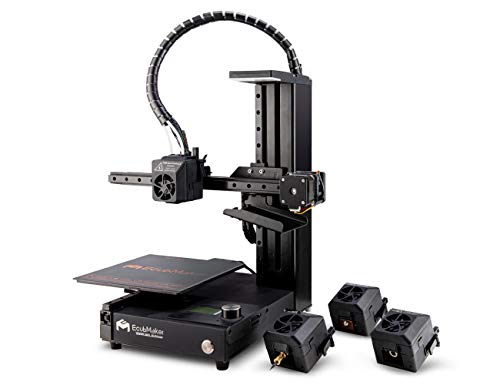

Four Functions of TOYDIY 4-in-1 3D Printer
FDM ToolheadFilament: PLA
The FDM Toolhead adopts the mode of the remote extruder wire feed (the highest temperature of PLA filament within 220 degrees). Three layers magnetic bed ensure to prevent printing wraping and easy to stick. The maximum bed heating temperature is around 50 degree. Therefore, TPU,ABS & other soft materials can’t be printed.
FDM-Dual ToolheadFilament: PLA
The FDM Dual Toolhead uses a unique 2-in 1-out extrusion structure,can only support the same PLA dual-color printing at present, or material printing at different temperatures. But the remote extruder does not support flexible support filament printing.

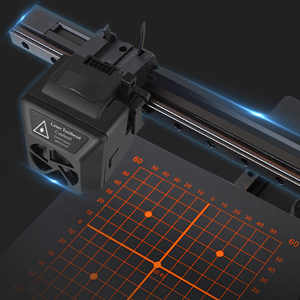

Laser Toolhead:Support Engraving Material: wood, leather, cardboard, plastic and other materials
The Laser Toolhead of TOYDIY adopts a 1500mW purple Laser. Automatic thickness detection for Laser engraving. Unsupported Materials: Unable to carve reflective materials (such as mirrored leather or plastic), Unable to carve transparent materials (e.g. acrylic, glass), Unable to carve metal materials (such as aluminum, iron, stainless steel, etc.).
CNC Toolhead:Support Engraving Material:wood board, plastic, foam board, acrylic and other non-metallic materials
The CNC Toolhead of TOYDIY 4in1 3D Printer adopts 385 DC motor with no load rotation speed of 8000~10000.
Please Note that Unsupported Materials: Unable to carve metal materials (such as aluminum, iron, stainless steel, etc.), Unable to carve high hardness materials (such as glass), Unable to cut materials, At present, the CNC function of Ecubware can only be used for basic engraving.
*This machine is a multi-function machine, please strictly follow the operation guide, otherwise it will lead to printing failure.
Four Printing Functions

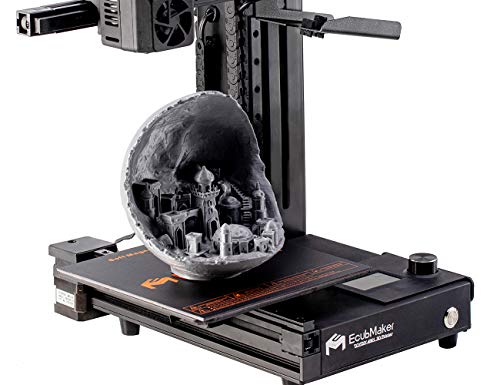

3D Printing
Nozzle aperture: 0.40mm
Maximum temperature: 220℃
Filament: PLA
Printing with “CURA” software, you need to modify the model configuration file, otherwise it will lead the printing failure.

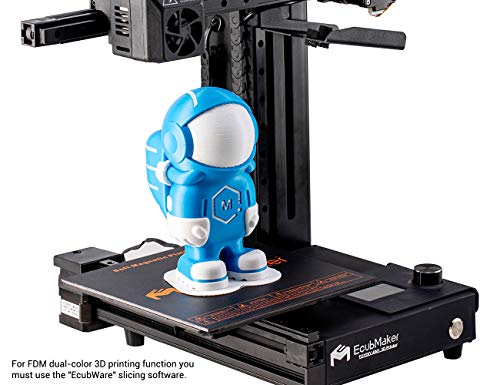

Dual-color 3D Printing
Nozzle aperture: 0.40mm
2-in 1-out extruder
Maximum temperature: 220℃
Filament: PLA(2 colors)
For FDM dual-color 3D printing function you must use the “EcubWare” slicing software.

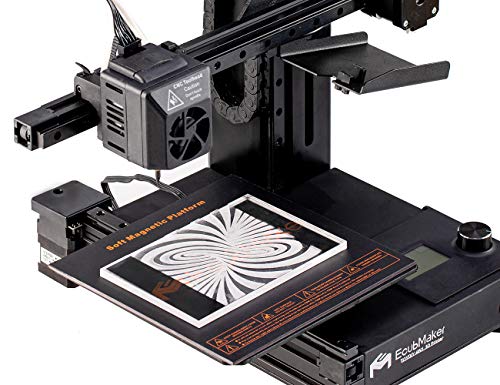

CNC Carving
Motor: 385mm DC 20w
RPM: 10000 rpm
Material: wood, leather, cardboard, cardboard, plastic and other materials.

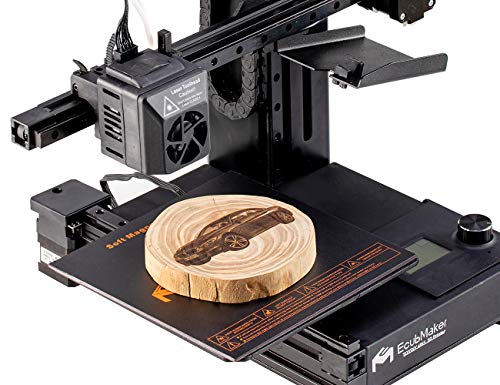

Laser Engraving
Laser power: 1500mW
laser wavelength: 405nM
Material: wood board, plastic, Schofer board, foam board, acrylic and other non-metallic materials

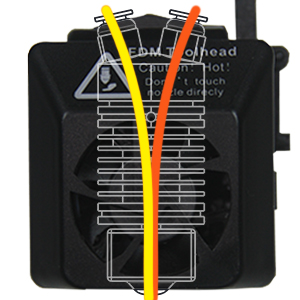

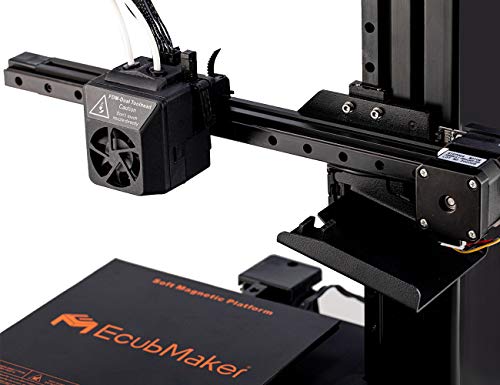

Unique FDM-Dual Toolhead
FDM-Dual Toolhead uses a unique 2-in 1-out extrusion structure to ensure repetitive positioning accuracy when switching extrusion. Which does not produce Jamming issues and accuracy issue.

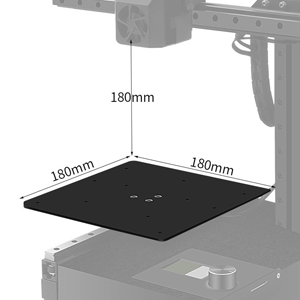

Large Print Size
180*180*180mm, bringing you a large printing experience Improve the stability and ensure worryless printing without missing any layer.
Ready to work right of the box to avoid assembly trouble.

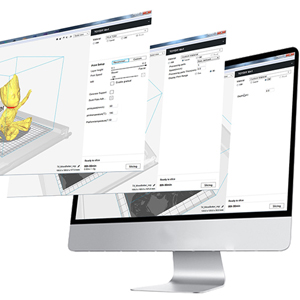

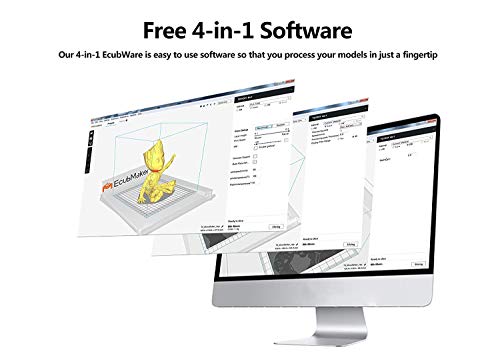

4-in-1 Slicing Software
EcubWare supports the set up and slicing of four Toolheads without the need for additional dedicated software.
A set of slicing software to solve the four printing functions, greatly improve the printing efficiency.
Industrial-Grade Airframe
Adopt all metal body, allow to print with more stable and smooth.
Industrial grade linear guide rail + stepper motor + screw, to ensure that every tiny movement is accurate.
Its repeated positioning can reach 0.01mm, making your printing works more exquisite.

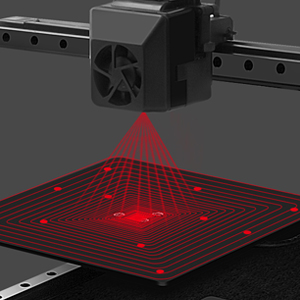

Unique Fully Automatic Leveling System
Original patent automatic leveling sensor system, you don’t have to worry about printing every time reliable automatic 3D printing.
*Only switch from any other toolhead requires manual leveling.

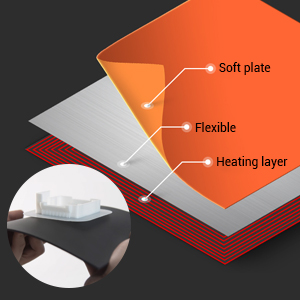

Three-Layers of Magnetic Bed
Three-layers heated bendable buildplate. Able to effectively prevent printing warping. The Unique Soft Magnetic Plate Design makes printing more convenient to remove and keep the model structure intact.
The printing base plate can be heated up to Max 50℃.
Specification of TOYDIY 4-in-1 3D Printer
Version
EcubMaker TOYDIY 4-in-1 3D printer —— FOUR Toolheads
FDM ＆ FDM Dual Toolhead
0.40mm/220℃
LASER Toolhead
Laser-power: 1500mW ; Laser wavelength: 405nm
CNC Toolhead
DC motor 20W ; Rpm 10000 speed
Machine Size ＆ Packing Size
372×315×395mm / 460×400×460mm
Interface
128*64 LED screen
3D Printing Filament
PLA
LASER Materials
wood, leather, cardboard, cardboard, plastic
CNC Materials
wood board, plastic, Schofer board, foam board, acrylic and other non-metallic materials
Position Accuracy
Z Axis: 2.5um ； XY Axis: 11um
Layer Thickness
0.05mm-0.4mm
Printing Speed
Max 24ml/h
Connection
USB on-line Printing ; SD Card off-line Printing
PC System
Winxp/Vista7/8/10 64bit
Power
Voltage:110V-220V ; OUTPUT:24V 5A ; Power:120W； 50Hz-60Hz
File Type
Input STL/OBJ ; OutPut Gcode
3D Printing + Dual-3D Printing
3D Printing+ Laser
3D Printing + Laser + CNC
3D Printing
✓
✓
✓
3D Dual-color Printing
✓
✓
✓
Laser
×
✓
✓
CNC
×
×
✓
Product Dimensions:14.65 x 12.4 x 15.55 inches; 14.99 Pounds
Item model number:TOYDIY 4in1 3D Printer
Date First Available:October 11, 2019
Manufacturer:EcubMaker
ASIN:B07Z1PZM2P
【4 IN 1 Machine】TOYDIY has FDM 3D Printing, Dual-Color 3D Printing, Laser Engraving and CNC Carving four functions. TOYDIY has 180*180*180mm work space, no assembly required, that delivers users out-of-the-box experience.
【Dual-Color 3D Printing】3D Printing supports PLA filament, Full-automatic leveling. Three-layers magnetic bendable heatbed allow easily remove the model. FDM-Dual Toolhead supports Dual-Color 3D Printing of PLA filament.
【Laser Engraving】Laser engraving uses a 1500mW high-power laser, able to engrave the surface of wood, plywood, plastic, leather and other materials.
【CNC Carving】CNC carving adopts 10000RPM 385 DC motor, able to carve wood, acrylic, plastic and other materials, and supports relief engraving.
【Easy To Use】TOYDIY 4-in-1 adopt special EcubWare software for all four function slicing without any for additional dedicated software. All around User-friendly machine for beginner. “EcubWare” supports win7 64-bit and above operating systems, and will support MAC OS in the future.Print with an SD card.
