Product Description

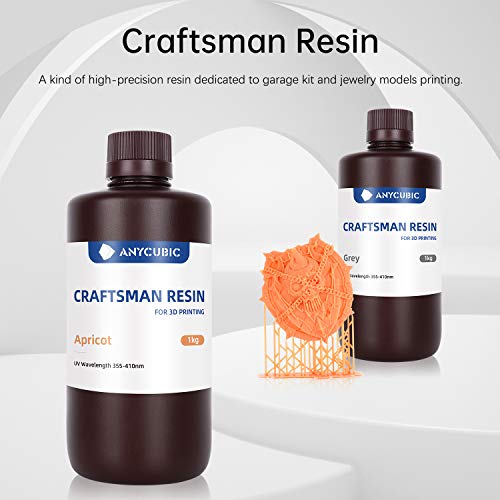

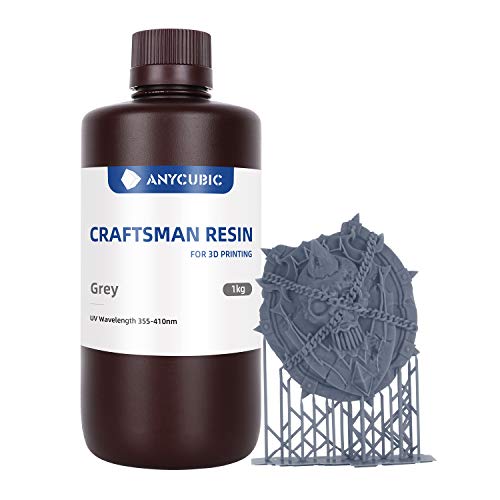

CRAFTSMAN RESIN
Anwendbarkeit: Anwendbar auf Schmuckindustrie, Zahnmedizin, Uhren, Brillen, Lehre und Forschung, Spielzeugdesign, Kunsthandwerksdesign, Industrieteiledesign usw.
Technische Parameter:
1. Viskosität: 150-250 MPa · s (NDJ-8S-Rotationsviskosimeter (25 ° C))
2. Absorptionsbande: 355 nm bis 410 nm
3. Dichte: 1,05-1,25 g / cm³ (Dichtemessgerät (25 l))
Manual:
The cured product of UV curable additive manufacturing resin is cured layer by layer by a high resolution UV projector to create a 3D printed object.
Molding process:
The LCD device contains a liquid tank that can hold resin, which is used to hold the resin. The LCD imaging system is located under the liquid tank and its imaging surface is located at the bottom of the liquid tank. With energy and graphics control, it can be cured to a specific thickness and shape each time. The thin resin layer (50 μm / 25 μm) (this resin layer corresponds exactly to the cross-sectional shape obtained during the previous cutting). There is a lifting mechanism above the liquid tank, which is pulled to a certain height every time the cross-sectional exposure is completed (the height is the same as the layer thickness) so that the solid resin that is currently cured is separated from the bottom surface of the liquid tank and with the Lifting plate is connected or a three-dimensional unit is formed on the resin layer formed last time by exposing and lifting layer by layer, and finally a cured UV-curable additive manufacturing resin cured product is obtained after curing and molding.
Flexural modulus:
1.882-2.385 MPa
Flexural strength:
59-70 MPa
Heat resistance:
80 ° C.
Thermal expansion:
95 * E-6
Volume shrinkage rate:
3.72-4.24%
Linear shrinkage rate:
1.05-1.35%
Tensile strength:
36-52 MPa
Package Dimensions:10.55 x 4.41 x 4.29 inches; 2.79 Pounds
Date First Available:February 21, 2021
Manufacturer:ANYCUBIC
ASIN:B08RYZPJNH

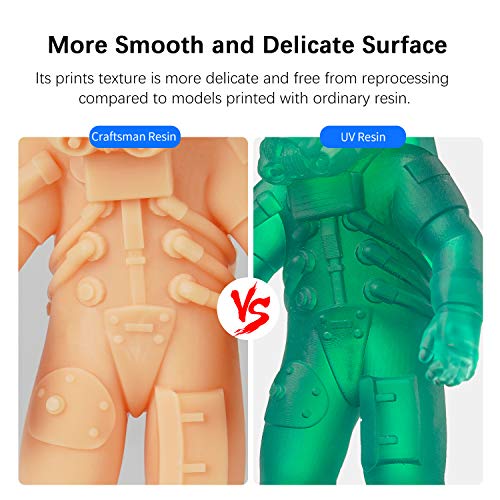

Low Shrinkage & High Precision: compared with ordinary resin printing models, red wax resin, the printed surface is smoother, designed for reducing volume shrinkage during the photocuring process, which ensures the high precision of the print model. Basically without secondary processing and polishing.

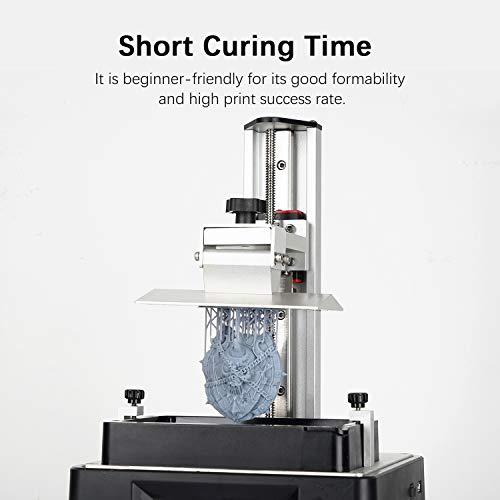

Fast Curing & Easy Molding: 405nm Rapid Resin was designed to significantly reduce the forming time with its excellent fluidity. The finished product has good strength and flexibility, excellent formability and impact resistance, and has a certain degree of flexibility.

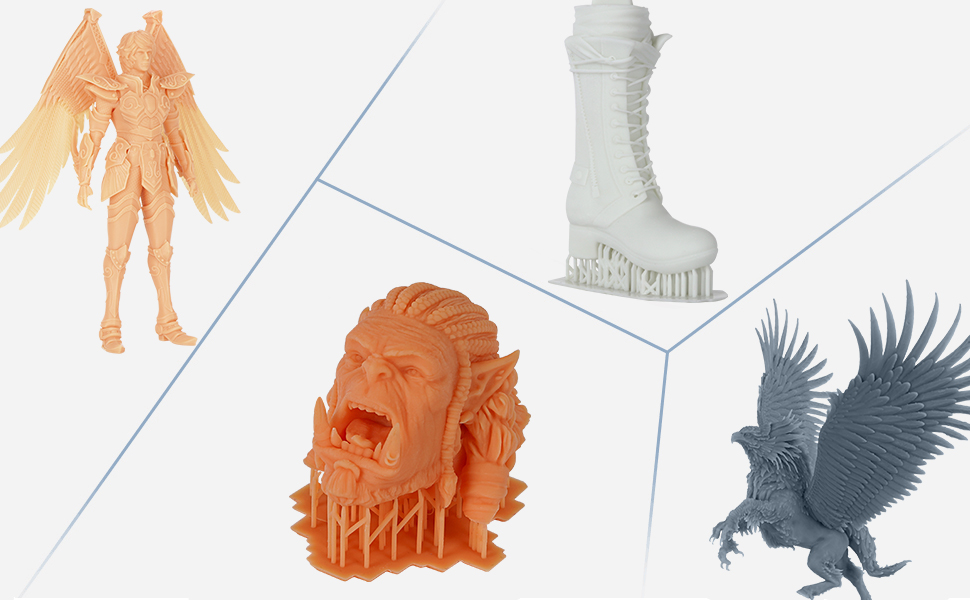

Wide Range of Applications: Castable resin can be used for lost wax casting, with no residue and low shrinkage rate. It is an ideal choice for more effective jewelry casting. It has a wide range of uses and can be used for jewelry models, manual models and architectural models.

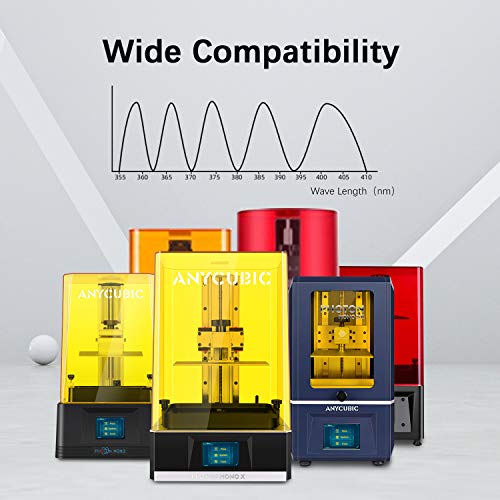

Strong Adaptability: suitable for most LCD/DLP3D printers, wide compatibility, large bandwidth, suitable for resins with wavelengths of 355-410nm. Stable printing, high success rate, friendly to novices.
Storage Method: The resin is best stored at 25-30°C. Please store the product in a dry and ventilated room, do not store it in sunlight or humid places. This resin is produced by ANYCUBIC with SDS report.
