Product Description
Powerful 3D Printing Platform

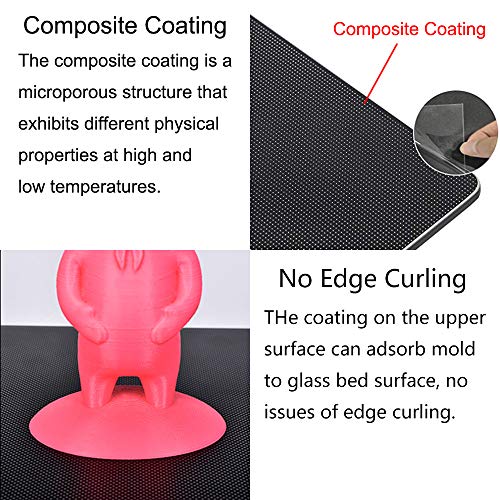

Technical Principle
As platform heated, the micropores expand. At the time, molecules of the filament penetrate into the micropores, so the print will be fixed on the surface of the glass bed.
Stop heating as printing completed, glass bed cools, the micropores shrink. So molecules of the filament are squeezed out of the micropores, and print mold fall off.

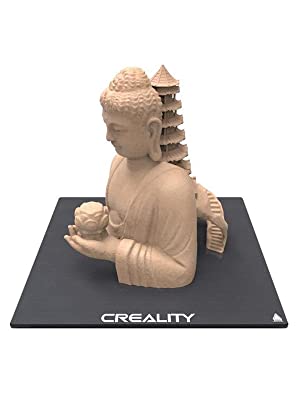

Advanced 3D Printer Print Bed

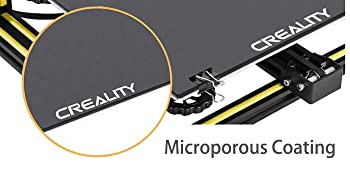

Compared with print platforms such as magnetic sticker, pei sheet, and spring steel plate, glass platform has the highest flatness. On this basis, composite microporous coating is added to greatly enhance its performance for getting higher precision mold.
Borosilicate glass is sturdy and durable, strong heat resistance, withstand multiple times use, no need of frequent replacement.
Compared with platforms made of other materials, installation and cleaning are simpler, saving your time.
No Edge Curling
Excellent Flatness
Easy Removal
Sturdy and Durable
Easy Clean
Convenient Use
Improve The Quality of Model and Low Difficulty of 3D Printing
No Edge Curling

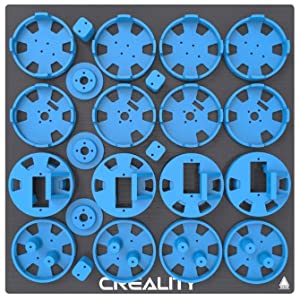

To solve issue of print edges curling, a composite microporous coating is added to the glass surface, ensuring that the bottom of mold can be firmly attached to the surface of the print platform.

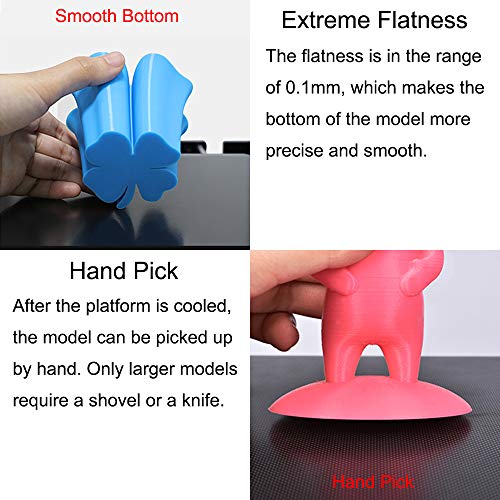

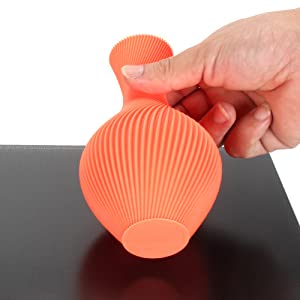

Excellent Flatness
Compared with magnetic mat or pei sticker, the improved 3D printer tempered glass plate provides the most flat(Flatness error range of 0.1 mm) build surface in the market, ensuring high flatness for the bottom of model.

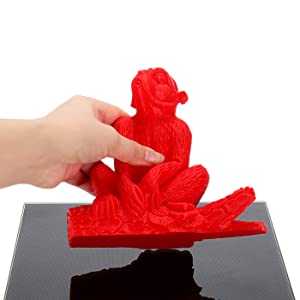

Easy Removal
After the printing is completed, wait for the hot bed to cool down to a suitable time for taking off the mold, then try to remove the mold, usually no need of other tools such as shovel.
Easy To Use and Maintain

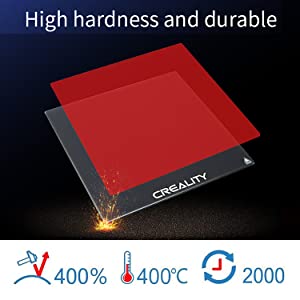

Sturdy and Durable
Hardness of 8 Mohs, avoiding the deformation of the ordinary aluminum heat bed after long-term use.
Heat resistance up to 400 ℃, no deform, ensure the accuracy of mold.
Withstand up to 2000 times use, no need of frequent replacement.

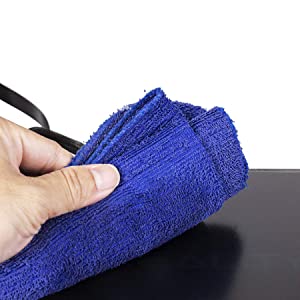

Easy to Clean
After multiple uses, wipe with alcohol or acetone.
Of course, soap water can also be used to clean glass surface.

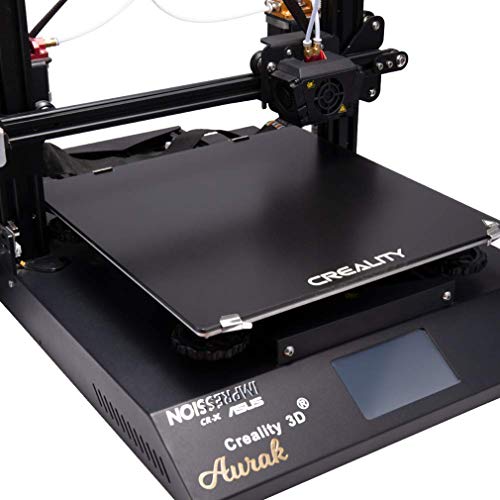

Convenient Assemble

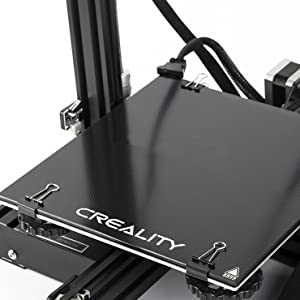

It could be fixed with middle sized clips.
Please note that this item only contains one piece of coated glass plate, but the clips are not included.

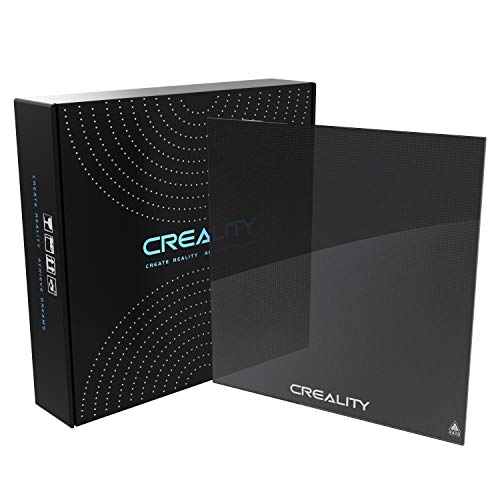

About Creality Coated Glass Bed

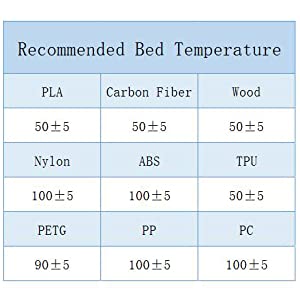

Bed Temperature
Bed temperature setting for direct extrusion and bowden extrusion is similar.
Bed temperature setting for different material filament is as shown.
However, please note that bed temperature will vary according to actual conditions.
Target
Higher requirement for print accuracy.
Don’t want to spend too much time cleaning the platform.
Wish for long-term use.
Take off the model more easily and quickly.
Disadvantage
Glass bed has high requirements for bed leveling, you may spend more time on leveling.
As the requirement of easy taking, when printing large molds with ABS or Nylon, glue sticks is still needed to avoid edge warping.
Finally, glass bed is more suitable for platforms with countersinks. For platforms with through holes, the screws may hit the glass surface and affect bed leveling.
Note & Warning
Clean with alcohol or acetone when it cools down, gently rub the surface, not shovel or scraper.
Forcibly removing print from the glass bed at high temperature will damage the coated side.
Coated side of glass bed must come down to room temperature or a bit higher for releasing mold.
As the print completed, DO NOT try to remove the model from the glass bed with force.
The glass plate is thicker, please lower platform hot bed to avoid nozzle scraping the glass bed.
Please remove the plastic protective film from the glass before use.
Please make sure that the glass fits tightly on the platform during installation.

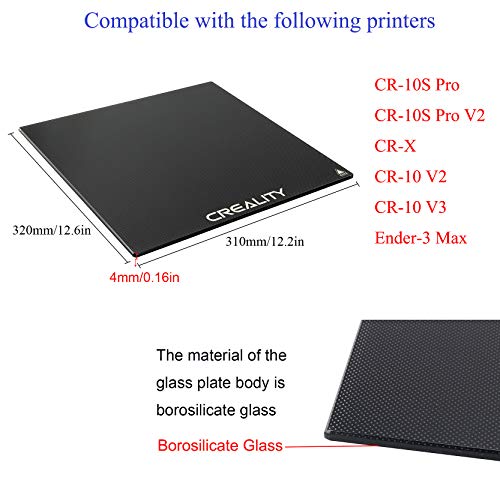

Technical Parameter
Size
310*320*4 mm
Application Range
CR-10S Pro, CR-10S Pro V2, CR-X, CR-X Pro, CR-10 V2, CR-10 V3, Ender-3 Max
Expanded
Other 3D printers using same size(310*320) or similar size(Not very recommended) print platform
Material
Borosilicate Glass
Technology Type
Composite microporous coating
Hardness
8 Mohs
Heat Resistance
400 ℃
Product Category
3D Printer Accessories
Clean With
Alcohol/ Acetone/ Soap water
Package List
1 * Coated Glass Bed
With Coating
✓
✓
✓
Siez
235*235
235*235
310*310
310*320
Fit For
Ender-3, Ender-3 Pro, Ender-3S, Ender-3X, Ender-3 V2, Ender-5, Ender-5 Pro, CR-20, CR-20 Pro, Voxelab Aquila, Geeetech A10 series, Artillery Genius
Ender-3, Ender-3 Pro, Ender-3S, Ender-3X, Ender-3 V2, Ender-5, Ender-5 Pro, CR-20, CR-20 Pro, Voxelab Aquila, Geeetech A10 series, Artillery Genius
CR-10, CR-10S, CR-10 S3, Sidewinder X1, Longer LK1, TENLOG TL-D3 Pro
Ender-3 Max, CR-10S Pro, CR-10S Pro V2, CR-X, CR-X Pro, CR-10 V2, CR-10 V3
MK8 heat block
Type
Print bed
Print bed
Print bed
Print bed
Nozzle
Product Dimensions:12.6 x 12.2 x 0.16 inches; 2.6 Pounds
Date First Available:June 5, 2020
Manufacturer:Dawnblade
ASIN:B089R2TYRV
No Edge Curling – Official printer glass bed offered by Creality, its microporous coating on the upper surface can adsorb the model to glass bed surface, no worry of print edges curling.
Universal Application – This printer glass plate is well suited for most types of filament including: PLA, ABS, PETG, Nylon, TPU, Polycarbonate, wood and more.
Excellent Flatness – Improved borosilicate glass plate provides more flat and more smooth build surface than magnetic mat or pei sheet, ensuring high flatness for the bottom of model.
Super Convenient – Very easy to take off the model, no tools needed; This glass bed could be fixed with middle sized clips and wash with alcohol or acetone at room temperature.
Compatibility – This printer parts is only applicable with Creality printers as following, CR-10S Pro, CR-10S Pro V2, CR-X, CR-X Pro, CR-10 V2, CR-10 V3 and Ender-3 Max, pls confirm if this glass print bed compatible with your printer.
